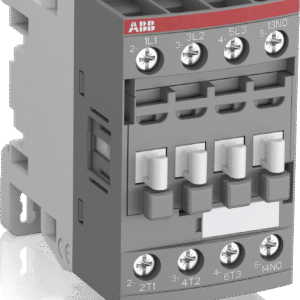

AF09-30-10-14 250-500V50/60HZ-DC Contactor

Name: AF09-30-10-14 250-500V50/60HZ-DC Contactor
Brand: ABB
SKU: 1SBL137001R1410
Price: 57.00 AED
Availability: OutOfStock

57.00 AED

On Order

Bulk Pricing

Quantity	Price
1 - 5	57.00 AED
6 - 10	55.86 AED
11 - 50	54.72 AED
51 - 200	53.58 AED
200+	52.44 AED

Out of stock

Add to Quote

SKU: 1SBL137001R1410 Category: Contactors Tags: Contactors, Electrical, Switchgear & Contactors Brands: ABB

✅ Free global shipping on all orders
✅ 30 days easy returns if you change your mind
✅ Order before noon for same day dispatch

Guaranteed Safe Checkout

Description

The AF09-30-10-14 is a 3 pole – 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and screw terminals, controlling motors up to 4 kW / 400 V AC (AC-3) or 5 hp / 480 V UL and switching power circuits up to 25 A (AC-1) or 25 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Additional information

Weight	310 g
Extended Product Type	AF09-30-10-14
Standard	CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1, IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1
Number of Poles	3P
Rated Current	35A
Rated Voltage	690V
Rated Power	4kW
Rated Frequency	50/60Hz
Breaking Capacity	100A
Frame size	00
Mounting	TH35-15 (35 x 1.5 cm Mounting Rail) acc. to IEC 60715
Degree of Protection IP	IP20
Mounting Type	TH35-15 (35 x 1.5 cm Mounting Rail) acc. to IEC 60715
Rated Cross-Section	0.75…6 mm²
Terminal Type	Screw Terminals
Product Net Depth (MM)	7.7 cm
Customs Tariff Number	85364900
Minimum Order Quantity	1
Temperature Range	-25…60°C
GTIN (EAN)	3471523110045
Resistance	4 g Closed Position & 2 g Open position 5 … 300 Hz
ABB EcoSolutions	Yes
ABB Site Meeting Group Waste To Landfill Target	No non-hazardous waste is sent to a landfill
Climatic Withstand	Category B according to IEC 60947-1 Annex Q
Connecting Capacity Auxiliary Circuit	Flexible with Ferrule 1/2x 0.75 … 2.5 mm²
Connecting Capacity Auxiliary Circuit UL/CSA	Rigid Solid 1/2x 18-14 AWG
Connecting Capacity Control Circuit	Flexible with Ferrule 1/2x 0.75 … 2.5 mm²
Connecting Capacity Control Circuit UL/CSA	Rigid Solid 1/2x 18-14 AWG
Connecting Capacity Main Circuit UL/CSA	Rigid Solid 1/2x 16-10 AWG
Country of Origin	Switzerland
Full Load Amps Motor Use	(120 V AC) Single Phase 13.8 A
General Use Rating UL/CSA	(600 V AC) 25 A
Horsepower Rating NEMA	(115 V AC) Single Phase 1/3 Hp
Horsepower Rating UL/CSA	(120 V AC) Single Phase 3/4 hp
Improved Energy Efficiency for Customers	Product Efficiency – Product considered more energy-efficient compared to similar product on market or older products from the same line
Maximum Electrical Switching Frequency	(AC-1) 600 cycles per hour
Maximum Mechanical Switching Frequency	3600 cycles per hour
Maximum Operating Altitude Permissible	Without Derating 3000 m
Maximum Operating Voltage UL/CSA	Main Circuit 600 V
Mounting by Screws (not supplied)	2 x M4 Screws Placed Diagonally
Number of Auxiliary Contacts NC	0
Number of Auxiliary Contacts NO	1
Number of Main Contacts NC	0
Number of Main Contacts NO	3
Operate Time	Between Coil De-energization and NC Contact Closing 13 … 98 ms
Package Level 1 Depth / Length	7.9 cm
Package Level 1 Gross Weight	310 g
Package Level 1 Height	4.7 cm
Package Level 1 Width	8.7 cm
Pollution Degree	3
Power Loss	at 6 A per Pole 0.1 W
Product Name	Block Contactor
Rated Control Circuit Voltage (Uc)	50 Hz 250 … 500 V
Rated Impulse Withstand Voltage (Uimp)	6 kV
Rated Insulation Voltage (Ui)	acc. to IEC 60947-4-1 690 V
Rated Operational Current AC-15 (Ie)	(500 V) 2 A
Rated Operational Current AC-3e (Ie)	(415 V) 60 °C 9 A
Rated Operational Current DC-1 (Ie)	(110 V) 1-Pole, 40 °C 10 A
Rated Operational Current DC-13 (Ie)	(24 V) 6 A / 144 W
Rated Operational Current DC-3 (Ie)	(110 V) 1-Pole, 40 °C 6 A
Rated Operational Current DC-5 (Ie)	(110 V) 1-Pole, 40 °C 4 A
Rated Short-time Withstand Current Low Voltage (Icw)	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 A
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops – Standard EN45555 – 92.7 %
Tightening Torque	Auxiliary Circuit 1.2 N·m
Tightening Torque UL/CSA	Auxiliary Circuit 11 in·lb
Wire Stripping Length	Auxiliary Circuit 1 cm
