Description

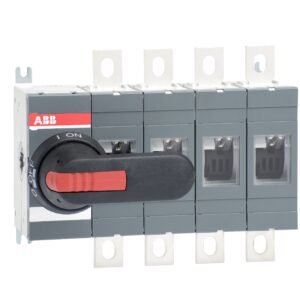

ABB OT400E04P SWITCH-DISCONNECTOR, Disconnect Switches — manufacturer part number 1SCA022719R1810.
4-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit included
Technical data
- Brand: ABB
- Manufacturer part number: 1SCA022719R1810
- Extended Product Type: OT400E04P
- Standard: IEC 60947-3
- Number of Poles: 4P
- Rated Current: 400A
- Rated Voltage: 1000V
- Color: grey
- Mounting: Base mounting
- Row Spacing: Standard
- Degree of Protection IP: IP00
- Mounting Type: Base mounting
- Terminal Type: Lug terminals
- Product Net Depth (MM): 10.7 cm
- Customs Tariff Number: 85365080
- Minimum Order Quantity: 1
- Operating mode: Front
- GTIN (EAN): 6417019230788
- Country of Origin: Finland
- Fourth Pole Position: Right Side
- Fourth Pole Type: Switched – Simultaneous Function
- Mechanical Durability: 16000
- Package Level 1 Depth / Length: 26 cm
- Package Level 1 Gross Weight: 4.2 kg
- Package Level 1 Height: 15.5 cm
- Package Level 1 Width: 22 cm
- Pollution Degree: 3
- Position of Line Terminals: Top In – Bottom Out
- Power Loss: at Rated Operating Conditions per Pole 10 W
- Rated Conditional Short-Circuit Current (Inc): (500 A fuse, 500 V) 100 kA
- Rated Impulse Withstand Voltage (Uimp): 12 kV
- Rated Insulation Voltage (Ui): acc. to IEC/EN 60664-1 1000 V
- Rated Operational Current AC-21A (Ie): (380 … 415 V) 400 A
- Rated Operational Current AC-22A (Ie): (380 … 415 V) 400 A
- Rated Operational Current AC-23A (Ie): (380 … 415 V) 400 A
- Rated Operational Power AC-23A (Pe): (220 … 240 V) 132 kW
- Rated Short-Circuit Making Capacity (Icm): (690 V) 65 kA
- Rated Short-time Withstand Current Low Voltage (Icw): for 1 s 15 kA
- Special Functions: No
- Switches Operating Mechanism: Mechanism at the End of the Switch
- Terminal Width: 2.5 cm
- Tightening Torque: acc. IEC 60947-1 30 … 44 N·m
