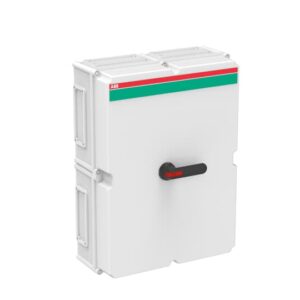

OT630KFCC3B 1SCA022278R3980 Disconnect Switches

OT630KFCC3B Enclosed Switch Disconnector

Name: OT630KFCC3B Enclosed Switch Disconnector
Brand: ABB
SKU: 1SCA022278R3980
Price: 3843.00 AED
Availability: OutOfStock

3,843.00 AED

On Order

Bulk Pricing

Quantity	Price
1 - 5	3,843.00 AED
6 - 10	3,766.14 AED
11 - 50	3,689.28 AED
51 - 200	3,612.42 AED
200+	3,535.56 AED

Out of stock

Add to Quote

SKU: 1SCA022278R3980 Category: Disconnect Switches Tags: Disconnect Switches, Electrical, Switchgear & Contactors Brands: ABB

✅ Free global shipping on all orders
✅ 30 days easy returns if you change your mind
✅ Order before noon for same day dispatch

Guaranteed Safe Checkout

Description

Encl. Switch Disconnector, 3-p. 415V AC23 570A, 315kW. Plastic enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure in the OT series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries knock out types for II-flanges. Cables can be inserted from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be defeated. N and PE terminals included.

Additional information

Weight	18.33 kg
Dimensions	25 × 56 × 76 cm
Extended Product Type	OT630KFCC3B
Standard	-3, IEC 60947-1
Number of Poles	3P
Rated Current	570A
Rated Voltage	1000V
Material	Plastic
Color	RAL7035
Degree of Protection IP	IP65
Rated Cross-Section	1.2 cm²
Terminal Type	Bolt
Product Net Depth (MM)	25 cm
Customs Tariff Number	85363090
Minimum Order Quantity	1
GTIN (EAN)	6417019064505
Resistance	Housing IK08
Cable Entry Position	Top/Bottom
Cable Outlets Per Side	2xII-flange / 2xII-flange
Country of Origin	Finland
Handle Type	Pistol
Maximum Mounted Auxiliary Contacts	2 NO, 2 NC
Mounted Auxiliary Contacts	0 NO, 0 NC
Neutral Type	Detachable Neutral
Number of Auxiliary Contacts NC	0
Number of Auxiliary Contacts NO	0
Package Level 1 Depth / Length	78 cm
Package Level 1 Gross Weight	20.5 kg
Package Level 1 Height	34 cm
Package Level 1 Width	57.5 cm
Pollution Degree	3
Position of Line Terminals	Top In – Bottom Out
Position of Neutral Terminals	Top In – Bottom Out
Position of PE Terminals	Top In – Bottom Out
Power Loss	at Rated Operating Conditions per Pole 25 W
Rated Conditional Short-Circuit Current (Inc)	90 kA
Rated Insulation Voltage (Ui)	750 V
Rated Operational Current AC-21A (Ie)	(500 V) 570 A
Rated Operational Current AC-22A (Ie)	(380 … 415 V) 570 A
Rated Operational Current AC-23A (Ie)	(380 … 415 V) 570 A
Rated Operational Power AC-23A (Pe)	(380 … 415 V) 315 kW
Rated Short-Circuit Making Capacity (Icm)	(1000 V AC) 80 kA
Rated Short-time Withstand Current Low Voltage (Icw)	for 1 s 20 kA
Recommended Screw Driver	Main Circuit M12
Tightening Torque	Main Circuit 75 N·m
