OT250KFCC3B 1SCA022278R2150 Disconnect Switches

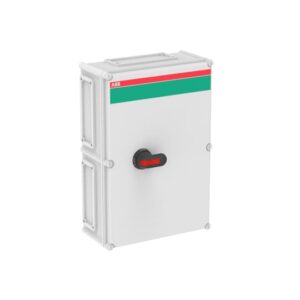

OT250KFCC3B Enclosed Switch Disconnector

Name: OT250KFCC3B Enclosed Switch Disconnector
Brand: ABB
SKU: 1SCA022278R2150
Price: 2875.00 AED
Availability: OutOfStock

2,875.00 AED

On Order

Bulk Pricing

Quantity	Price
1 - 5	2,875.00 AED
6 - 10	2,817.50 AED
11 - 50	2,760.00 AED
51 - 200	2,702.50 AED
200+	2,645.00 AED

Out of stock

Add to Quote

SKU: 1SCA022278R2150 Category: Disconnect Switches Tags: Disconnect Switches, Electrical, Switchgear & Contactors Brands: ABB

✅ Free global shipping on all orders
✅ 30 days easy returns if you change your mind
✅ Order before noon for same day dispatch

Guaranteed Safe Checkout

Description

Encl. Switch Disconnector, 3-p. 415V AC23 250A, 110kW. Plastic enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure in the OT series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries knock out types for II-flanges. Cables can be inserted from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be defeated. N and PE terminals included.

Additional information

Weight	7.366 kg
Dimensions	18 × 38 × 56 cm
Extended Product Type	OT250KFCC3B
Standard	-3, IEC 60947-1
Number of Poles	3P
Rated Current	250A
Rated Voltage	1000V
Material	Plastic
Color	RAL7035
Degree of Protection IP	IP65
Rated Cross-Section	8 mm²
Terminal Type	Bolt
Product Net Depth (MM)	18 cm
Customs Tariff Number	85363090
Minimum Order Quantity	1
GTIN (EAN)	6417019064413
Resistance	Housing IK08
Cable Entry Position	Top/Bottom
Cable Outlets Per Side	II-flange / II-flange
Country of Origin	Finland
Handle Type	Pistol
Maximum Mounted Auxiliary Contacts	2 NO, 2 NC
Mounted Auxiliary Contacts	0 NO, 0 NC
Neutral Type	Detachable Neutral
Number of Auxiliary Contacts NC	0
Number of Auxiliary Contacts NO	0
Package Level 1 Depth / Length	71 cm
Package Level 1 Gross Weight	9.3 kg
Package Level 1 Height	32.5 cm
Package Level 1 Width	41.5 cm
Pollution Degree	3
Position of Line Terminals	Top In – Bottom Out
Position of Neutral Terminals	Top In – Bottom Out
Position of PE Terminals	Top In – Bottom Out
Power Loss	at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)	40.5 kA
Rated Insulation Voltage (Ui)	750 V
Rated Operational Current AC-21A (Ie)	(380 … 415 V) 250 A
Rated Operational Current AC-22A (Ie)	(380 … 415 V) 250 A
Rated Operational Current AC-23A (Ie)	(380 … 415 V) 250 A
Rated Operational Power AC-23A (Pe)	(380 … 415 V) 132 kW
Rated Short-Circuit Making Capacity (Icm)	(1000 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)	for 1 s 8 kA
Recommended Screw Driver	Main Circuit M8
Tightening Torque	Main Circuit 22 N·m
