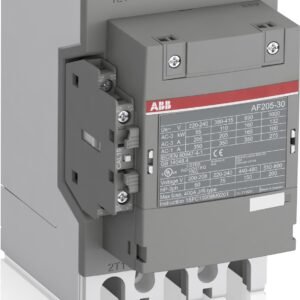

AF205-30-11-11 1SFL527002R1111 Contactors

Name: AF205-30-11-11 1SFL527002R1111 Contactors - EPFINDER | By EP Group Certified Electrical Solutions Since 2007
SKU: 1SFL527002R1111
Price: 368.96 USD
Availability: InStock

$368.96

AF205-30-11-11 Contactor

In Stock

Bulk Pricing

Quantity	Price
1 - 5	$368.96
6 - 10	$361.58
11 - 50	$354.20
51 - 200	$346.82
200+	$339.44

In stock

Add to Quote

SKU: 1SFL527002R1111 Category: Contactors Tags: Contactors, Electrical, Switchgear & Contactors Brands: ABB

✅ Free global shipping on all orders
✅ 30 days easy returns if you change your mind
✅ Order before noon for same day dispatch

Guaranteed Safe Checkout

Description

The AF205-30-11-11 is a 3 pole – 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 110 kW / 400 V AC (AC-3) or 150 hp / 480 V UL and switching power circuits up to 350 A (AC-1) or 300 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. Includes Mounting kit, containing all neccessary screws, washers and sockets for connecting the terminals, and screws for mounting the device.

Additional information

Weight	2.4 kg
Dimensions	15.2 × 10.5 × 19.6 cm
Extended Product Type	AF205-30-11-11
Number of Poles	3P
Rated Current	350A
Rated Voltage	1000V
Rated Power	110kW
Rated Frequency	50/60Hz
Breaking Capacity	100A
Degree of Protection IP	IP40
Rated Cross-Section	50…9.5 cm²
Terminal Type	Main Circuit: Bars
Product Net Depth (MM)	15.2 cm
Customs Tariff Number	85364900
Minimum Order Quantity	1
Temperature Range	-25…50°C
GTIN (EAN)	7.3205E+12
L1	Electrical
L2	Switchgear & Contactors
L3	Contactors
ABB EcoSolutions	Yes
ABB Site Meeting Group Waste To Landfill Target	Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
Coil Consumption	Holding at Max. Rated Control Circuit Voltage 50 Hz 10 V·A
Coil Operating Limits	(acc. to IEC 60947-4-1) 0.85 x Uc Min. … 1.1 x Uc Max. (at θ ≤ 70 °C)
Connecting Capacity Auxiliary Circuit	Flexible with Ferrule 1x 0.75 … 2.5 mm²
Extended Product Lifetime	Product Durability
Full Load Amps Motor Use	(440 … 480 V AC) Three Phase 180 A
General Use Rating UL/CSA	(1000 V AC) 275 A
Horsepower Rating UL/CSA	(200 V AC) Three Phase 60 hp
Improved Energy Efficiency for Customers	Product Efficiency – Product requires less energy to operate compared to similar product on market or older products from the same line
Maximum Electrical Switching Frequency	(AC-1) 300 cycles per hour
Maximum Mechanical Switching Frequency	300 cycles per hour
Maximum Operating Altitude Permissible	Without Derating 3000 m
Maximum Operating Voltage UL/CSA	Main Circuit 600 V
Mechanical Durability	5 million
Number of Auxiliary Contacts NC	1
Number of Auxiliary Contacts NO	1
Number of Main Contacts NC	0
Number of Main Contacts NO	3
Operate Time	Between Coil De-energization and NO Contact Opening 37 … 47 ms
Package Level 1 Depth / Length	25.8 cm
Package Level 1 Gross Weight	3 kg
Package Level 1 Height	23.5 cm
Package Level 1 Width	16 cm
Power Loss	at Rated Operating Conditions per Pole 8 W
Product Name	Block Contactor
Rated Breaking Capacity AC-3	8 x Ie AC-3
Rated Breaking Capacity AC-3e	8.5 x Ie AC-3e
Rated Control Circuit Voltage (Uc)	50 Hz 24 … 60 V
Rated Impulse Withstand Voltage (Uimp)	Main Circuit 8 kV
Rated Insulation Voltage (Ui)	acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
Rated Making Capacity AC-3	10 x Ie AC-3
Rated Making Capacity AC-3e	12 x Ie AC-3e
Rated Operational Current DC-1 (Ie)	(110 V) 2 Poles in Series, 40 °C 275 A
Rated Operational Current DC-3 (Ie)	(110 V) 2 Poles in Series, 40 °C 275 A
Rated Operational Current DC-5 (Ie)	(110 V) 2 Poles in Series, 40 °C 275 A
Rated Short-time Withstand Current Low Voltage (Icw)	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 350 A
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops – Standard EN45555 – 79.1 %
Short-Circuit Protective Devices	gG Type Fuses 400 A
Tightening Torque	Cable Lug 9 N·m
