Additional information
| Weight | 2.5 kg |
|---|---|
| Dimensions | 8.25 × 10.5 × 16 cm |

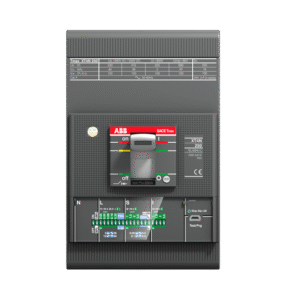

| Extended Product Type | XT4N 160 Ekip Dip LS/I In=63A 3p F F |
| Standard | IEC60947-2 |
| Number of Poles | 3P |
| Execution Type | EL |
| Rated Current | 63A |
| Rated Voltage | 690V |
| Rated Frequency | 50/60Hz |
| Breaking Capacity | 65KA |
| Trip Unit | Ekip Dip LS/I |
| Breaking Class | N |
| Rated Cross-Section | 85…20 cm² |
| Terminal Type | Bolt |
| Product Net Depth (MM) | 8.25 cm |
| Customs Tariff Number | 85362090 |
| Minimum Order Quantity | 1 |
| GTIN (EAN) | 8.01564E+12 |
| L1 | |
| L2 | Switchgear & Contactors |
| L3 | Moulded Case Circuit Breakers (MCCB) |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Circuit Breaker Type to be Associated | Power Distribution |
| Current Type | AC |
| Electrical Durability | 120 cycles per hour |
| Extended Product Lifetime | Product Modularity |
| Mechanical Durability | 240 cycles per hour |
| Opening Time | CB with SOR 30 ms |
| Package Level 1 Depth / Length | 16.8 cm |
| Package Level 1 Gross Weight | 2.5 kg |
| Package Level 1 Height | 21 cm |
| Package Level 1 Width | 14.5 cm |
| Power Loss | at Rated Operating Conditions per Pole 1.4 W |
| Product Name | Moulded Case Circuit Breaker |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Recommended Screw Driver | Main Circuit M8 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops – Standard EN45555 – 56.30 % |
| Tightening Torque | 8 N·m |
