Description

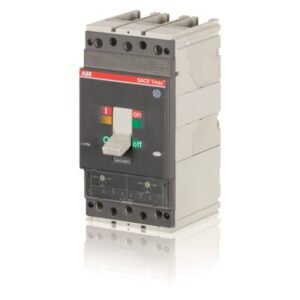

ABB T4S 250 TMA 250-2500 3p F F, Moulded Case Circuit Breakers (MCCB) — manufacturer part number 1SDA054197R1.
C.BREAKER TMAX T4S 250 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 250 I3=1250…2500 A
Technical data
- Brand: ABB
- Manufacturer part number: 1SDA054197R1
- Electrical Durability: 8000 cycle
- Mechanical Durability: 20000 cycle
- Package Level 1 Depth / Length: 28.5 cm
- Package Level 1 Gross Weight: 2.5 kg
- Package Level 1 Height: 24 cm
- Package Level 1 Width: 24.8 cm
- Power Loss: at Rated Operating Conditions per Pole 13.7 W
- Product Name: Moulded Case Circuit Breaker
- Rated Impulse Withstand Voltage (Uimp): 8 kV
- Rated Insulation Voltage (Ui): 1000 V
- Suitable for Product Class: Moulded Case Circuit Breakers
- Test Voltage Max (Utest): 3500 V
- Test Voltage at Industrial Frequency for 1 Minute: 3500 V
- Application: T4
- Breaking Capacity: 85kA
- Breaking Class: S
- Customs Tariff Number: 85362090
- Execution Type: TM
- Extended Product Type: T4S 250 TMA 250-2500 3p F F
- GTIN (EAN): 8015644552978
- Minimum Order Quantity: 1
- Product Net Depth (MM): 10.35 cm
- Standard: IEC
- Terminal type: Fixed Circuit-Breakers
- Trip Unit: TMA
