Additional information
| Weight | 4.817 kg |
|---|---|
| Dimensions | 103.5 × 140 × 2.05 m |

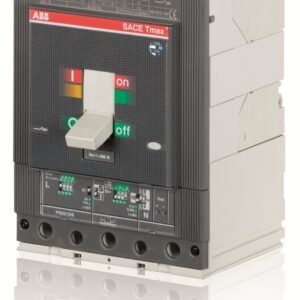

| Extended Product Type | T5N 630 PR221DS-LS/I In=630 3p F F |
| Standard | IEC |
| Number of Poles | 3P |
| Execution Type | EL |
| Rated Current | 630A |
| Rated Voltage | 690VAC |
| Breaking Capacity | 70kA |
| Trip Unit | PR221DS-LS/I |
| Breaking Class | N |
| Application | T5 |
| Terminal type | Fixed Circuit-Breakers |
| Product Net Depth (MM) | 10.35 cm |
| Customs Tariff Number | 85362090 |
| Minimum Order Quantity | 1 |
| GTIN (EAN) | 8015644554941 |
| _OG Title | T5N 630 PR221DS-LS/I In=630 3p F F |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| Display Name | T5N 630 PR221DS-LS/I In=630 3p F F |
| E-Number (Finland) | 3655323 |
| E-Number (Norway) | 4383613 |
| E-Number (Sweden) | 3180374 |
| ETIM 10 | EC000228 – Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 – Power circuit-breaker for trafo/generator/installation protection |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Electrical Durability | 5000 cycle |
| Environmental Information | 9AKK10103A1056 |
| Instructions and Manuals | 1SDH000437R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| Mechanical Durability | 20000 cycle |
| Object Classification Code | Q |
| Package Level 1 Depth / Length | 28.5 cm |
| Package Level 1 Gross Weight | 5.1 kg |
| Package Level 1 Height | 24 cm |
| Package Level 1 Width | 24.8 cm |
| Power Loss | at Rated Operating Conditions per Pole 41 W |
| Product ID | 1SDA054396R1 |
| Product Name | Moulded Case Circuit Breaker |
| REACH Declaration | 9AKK108466A1425 |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | b05eee46-ac7c-4986-b103-4456de0f7bf3 Italy |
| Simplified SCIP | a977f2ff-a1c8-4123-8a12-edf8e740a809 Germany |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
