Additional information
| Weight | 1.75 kg |
|---|---|
| Dimensions | 11.8 × 16 × 23 cm |

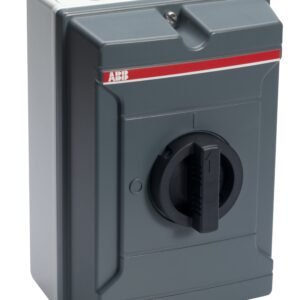

| Extended Product Type | KSE380TPN-B |
| Standard | -3, IEC 60947-1 |
| Number of Poles | 3P |
| Rated Current | 80A |
| Rated Voltage | 750V |
| Material | Aluminium |
| Color | RAL7012 / RAL7035 |
| Degree of Protection IP | IP65 |
| Rated Cross-Section | 1.5…3.5 cm² |
| Terminal Type | Screw Terminals |
| Product Net Depth (MM) | 11.8 cm |
| Customs Tariff Number | 85363030 |
| Minimum Order Quantity | 76 |
| GTIN (EAN) | 3.80016E+12 |
| Resistance | Housing IK08 |
| L1 | |
| L2 | Switchgear & Contactors |
| L3 | Disconnect Switches |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM40 / 2xM40+M16 |
| Country of Origin | Bulgaria |
| Handle Type | Round |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mechanical Durability | 20000 |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Fixed Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Package Level 1 Depth / Length | 24 cm |
| Package Level 1 Gross Weight | 1.75 kg |
| Package Level 1 Height | 15 cm |
| Package Level 1 Width | 17 cm |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In – Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 2.8 W |
| Rated Conditional Short-Circuit Current (Inc) | 13 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-22A (Ie) | (380 … 415 V) 80 A |
| Rated Operational Current AC-23A (Ie) | (380 … 415 V) 75 A |
| Rated Operational Power AC-23A (Pe) | (380 … 415 V) 37 kW |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 2.1 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1.5 kA |
| Special Functions | EMC |
| Switches Operating Mechanism | On the Front of the Switch |
| Tightening Torque | acc. IEC 60947-1 2 |
| Wire Stripping Length | 1.3 cm |
