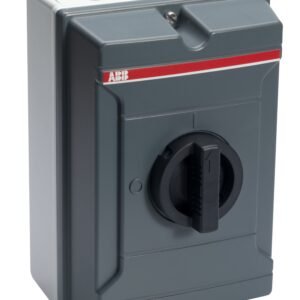

KSE363TPN Enclosed Switch Disconnector
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | $0.00 |
| 6 - 10 | $0.00 |
| 11 - 50 | $0.00 |
| 51 - 200 | $0.00 |
| 200+ | $0.00 |
Encl. Switch Disconnector, 3-p. 415V AC23 45A, 22kW. Aluminium enclosure. IP65. Black Round handle. Interlocked cover. This is bulk package for one pallet, intended for Middle East market. The prodcut is exactly the same as the KSE363TPN but bulk packaged with a minium order quantity of 76 pcs.
| Weight | 1.75 kg |
|---|---|
| Dimensions | 11.8 × 16 × 23 cm |
| Extended Product Type | KSE363TPN-B |
| Standard | -3, IEC 60947-1 |
| Number of Poles | 3P |
| Rated Current | 63A |
| Rated Voltage | 750V |
| Material | Aluminium |
| Color | RAL7012 / RAL7035 |
| Degree of Protection IP | IP65 |
| Rated Cross-Section | 1.5…3.5 cm² |
| Terminal Type | Screw Terminals |
| Product Net Depth (MM) | 11.8 cm |
| Customs Tariff Number | 85363030 |
| Minimum Order Quantity | 76 |
| GTIN (EAN) | 3.80016E+12 |
| Resistance | Housing IK08 |
| L1 | |
| L2 | Switchgear & Contactors |
| L3 | Disconnect Switches |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM40 / 2xM40+M16 |
| Country of Origin | Bulgaria |
| Handle Type | Round |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mechanical Durability | 20000 |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Fixed Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Package Level 1 Depth / Length | 24 cm |
| Package Level 1 Gross Weight | 1.75 kg |
| Package Level 1 Height | 15 cm |
| Package Level 1 Width | 17 cm |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In – Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 2.8 W |
| Rated Conditional Short-Circuit Current (Inc) | 13 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-22A (Ie) | (380 … 415 V) 63 A |
| Rated Operational Current AC-23A (Ie) | (380 … 415 V) 45 A |
| Rated Operational Power AC-23A (Pe) | (380 … 415 V) 22 kW |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 1.4 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1 kA |
| Special Functions | EMC |
| Switches Operating Mechanism | On the Front of the Switch |
| Tightening Torque | acc. IEC 60947-1 2 |
| Wire Stripping Length | 1.3 cm |
