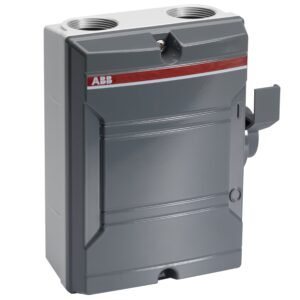

KSE340TPN Enclosed Switch Disconnector
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | $0.00 |
| 6 - 10 | $0.00 |
| 11 - 50 | $0.00 |
| 51 - 200 | $0.00 |
| 200+ | $0.00 |
Encl. Switch Disconnector, 3-p. 415V AC23 25A, 11kW. Aluminium enclosure. IP65. Grey Side-operated handle. Interlocked cover. This is bulk package for one pallet, intended for Middle East market. The prodcut is exactly the same as the KSE340TPN but bulk packaged with a minium order quantity of 320 pcs.
| Weight | 800 g |
|---|---|
| Dimensions | 6.8 × 13.8 × 16.8 cm |
| Extended Product Type | KSE340TPN-B |
| Standard | -3, IEC 60947-1 |
| Number of Poles | 3P |
| Rated Current | 40A |
| Rated Voltage | 690V |
| Material | Aluminium |
| Color | RAL7012 / RAL7035 |
| Degree of Protection IP | IP65 |
| Rated Cross-Section | 0.75…1 cm² |
| Terminal Type | Screw Terminals |
| Product Net Depth (MM) | 6.8 cm |
| Customs Tariff Number | 85363030 |
| Minimum Order Quantity | 320 |
| GTIN (EAN) | 3.80016E+12 |
| Resistance | Housing IK09 |
| L1 | |
| L2 | Switchgear & Contactors |
| L3 | Disconnect Switches |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM32 / 2xM32+M16 |
| Country of Origin | Bulgaria |
| Handle Type | Side-Operated |
| Maximum Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Mechanical Durability | 10000 |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Fixed Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Package Level 1 Depth / Length | 16.9 cm |
| Package Level 1 Gross Weight | 800 g |
| Package Level 1 Height | 7 cm |
| Package Level 1 Width | 13.9 cm |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In – Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 1.6 W |
| Rated Conditional Short-Circuit Current (Inc) | 4.8 kA |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 690 V |
| Rated Operational Current AC-22A (Ie) | (380 … 415 V) 40 A |
| Rated Operational Current AC-23A (Ie) | (380 … 415 V) 25 A |
| Rated Operational Power AC-23A (Pe) | (380 … 415 V) 11 kW |
| Switches Operating Mechanism | 10 (Right Side) |
| Tightening Torque | acc. IEC 60947-1 1.2 |
| Wire Stripping Length | 7 mm |
