38.00 AED

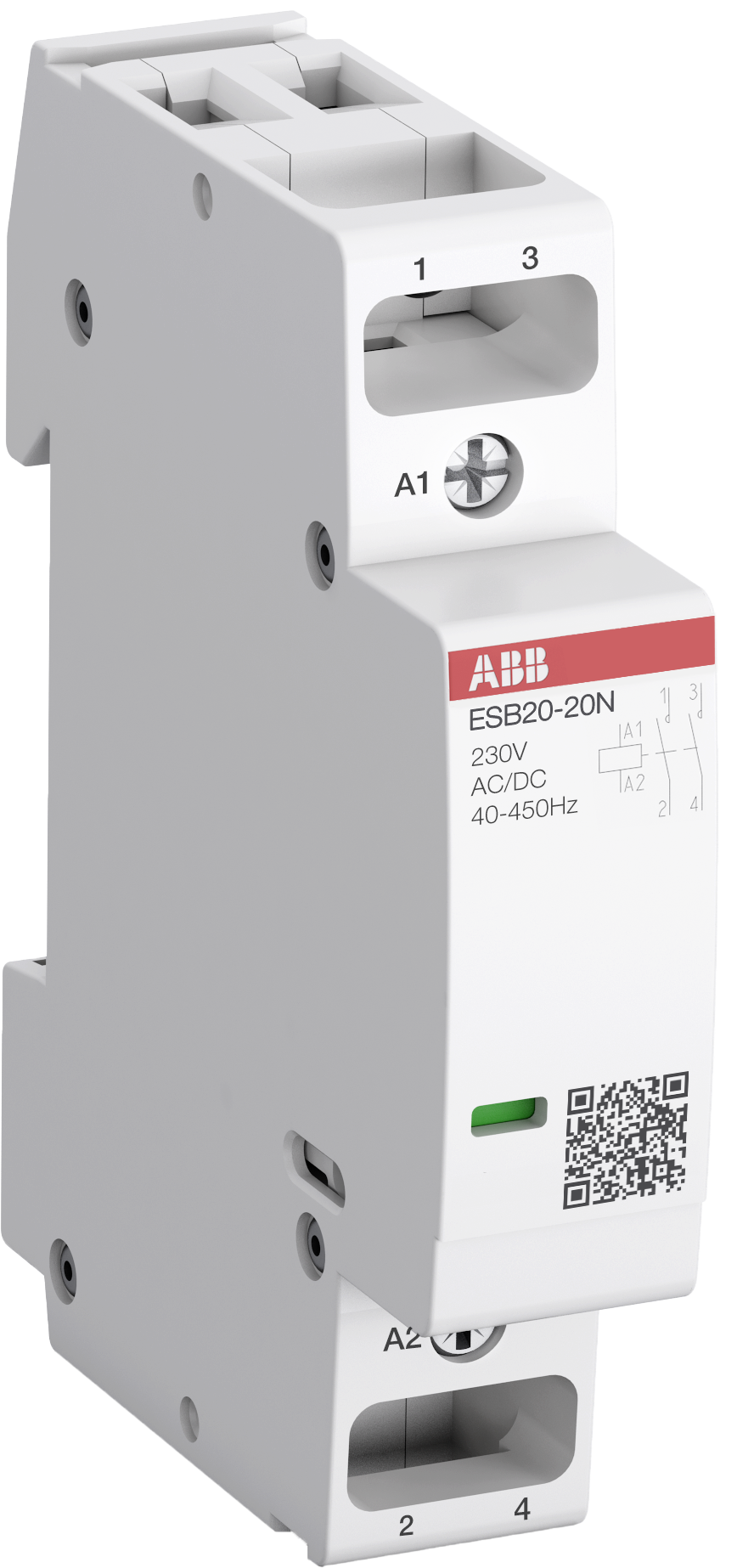

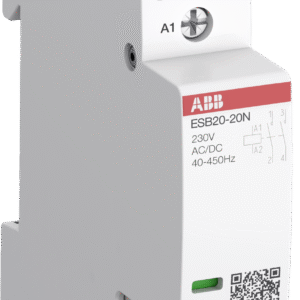

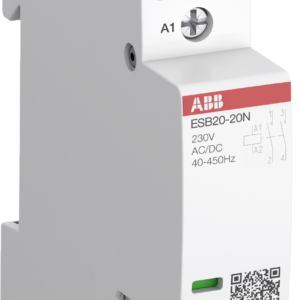

ESB20-20N-06 Installation Contactor (NO) 20 A – 2 NO – 0 NC – 230 V – Control Circuit DC
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | 38.00 AED |
| 6 - 10 | 37.24 AED |
| 11 - 50 | 36.48 AED |
| 51 - 200 | 35.72 AED |
| 200+ | 34.96 AED |
In stock
The ESB20..N installation contactors are used to control single loads up to 20 A and can be operated by AC or DC.
These contactors are made for use in household applications as well as in industrial environments.
The following benefits are provided:
Hum-free operation, low power consumption and integrated overvoltage protection.
Various contact combinations and accessories are available.
| Weight | 140 g |
|---|---|
| Extended Product Type | ESB20-20N-06 |
| Standard | IEC/EN 60947-1 |
| Number of Poles | 2P |
| Rated Current | 20A |
| Rated Voltage | 220VDC |
| Rated Power | 1.3kW |
| Rated Frequency | DC |
| Mounting | TH35-15 (35 x 1.5 cm Mounting Rail) acc. to IEC 60715 |
| Degree of Protection IP | IP20 |
| Mounting Type | TH35-15 (35 x 1.5 cm Mounting Rail) acc. to IEC 60715 |
| Rated Cross-Section | 1โฆ6 mmยฒ |
| Terminal Type | Screw Terminals |
| Product Net Depth (MM) | 6.5 cm |
| Customs Tariff Number | 85365080 |
| Minimum Order Quantity | 12 |
| Temperature Range | -25โฆ+55ยฐC |
| DIN Place Units | 1 |
| GTIN (EAN) | 3471523005112 |
| Resistance | 11 ms Pulse 15 g |
| Coil Consumption | Average Holding Value 50 / 60 Hz 2.5 VยทA |
| Coil Operating Limits | (acc. to IEC 60947-4-1) 0.85 โฆ 1.1 x Uc (at ฮธ โค 55 ยฐC) |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1x 0.75 โฆ 2.5 mmยฒ |
| Connecting Capacity Control Circuit UL/CSA | Solid 16-10 AWG |
| Connecting Capacity Main Circuit UL/CSA | Solid 14-8 AWG |
| Electrical Durability | AC-1 (NO) 150000 cycle |
| Full Load Amps Motor Use | (220 โฆ 240 V AC) Single Phase, NO 8 A |
| General Use Rating UL/CSA | (acc. to UL 240 V) 20 A |
| Horsepower Rating UL/CSA | (220 โฆ 240 V AC) Single Phase, NO 1 Hp |
| Maximum Electrical Switching Frequency | (AC-1) 300 cycles per hour |
| Maximum Operating Altitude Permissible | 2000 m |
| Maximum Operating Voltage UL/CSA | Main Circuit 240 V AC |
| Mechanical Durability | Nr. Operations 1000000 cycle |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 2 |
| Package Level 1 Depth / Length | 22.2 cm |
| Package Level 1 Gross Weight | 1.68 kg |
| Package Level 1 Height | 6.95 cm |
| Package Level 1 Width | 8.8 cm |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions AC-1 per Pole 1.4 W |
| Product Name | Installation Contactor |
| Rated Breaking Capacity AC-3 | 8 x Ie / AC-3 |
| Rated Control Circuit Voltage (Uc) | 230 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Insulation Voltage (Ui) | 400 V |
| Rated Making Capacity AC-3 | 10 x Ie / AC-3 |
| Rated Operational Current AC-7a (Ie) | (NO) 20 A |
| Rated Operational Current AC-7b (Ie) | (230 V) Single Phase, NO 9 A |
| Rated Operational Power AC-7a (Pe) | (230 V) Single Phase, NO 4.6 kW |
| Rated Operational Power AC-7b (Pe) | (230 V) Single Phase, NO 1.3 kW |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 ยฐC Ambient Temp, in Free Air, from a Cold State 10 s 72 A |
| Recommended Screw Driver | Control Circuit Pozidriv 1 |
| Tightening Torque | Control Circuit 0.9 Nยทm |
| Tightening Torque UL/CSA | Control Circuit 8 inยทlb |
| Wire Stripping Length | Control Circuit 7 mm |
