$30.50

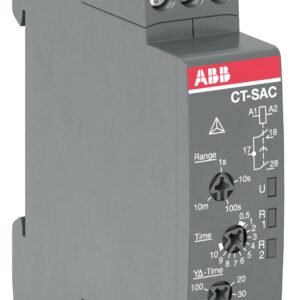

CT-SAC.22 Time relay, Star-delta 2n/o, 24-48VDC/24-240VAC
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | $30.50 |
| 6 - 10 | $29.89 |
| 11 - 50 | $29.28 |
| 51 - 200 | $28.67 |
| 200+ | $28.06 |
In stock
The CT-SAC.22 is a single-function electronic time relay from the CT-C timer range. It provides a star-delta function with 4 time ranges from 0.05 s to 10 min. and a transition time adjustable from 20 ms to 100 ms. This time relay operates with a rated control supply voltage of 24 – 48 V DC / 24 – 240 V AC and has a 2 n/o output with contacts rated at 250 V / 4 A.
| Weight | 66 g |
|---|---|
| Dimensions | 6.3 × 1.75 × 7 cm |
| Extended Product Type | CT-SAC.22 |
| Standard | CAN/CSA C22.2 No.14 |
| Rated Voltage | 250V |
| Rated Frequency | 50/60Hz |
| Mounting | 1 … 6 |
| Degree of Protection IP | IP50 |
| Mounting Type | TH35-15 (35 x 1.5 cm Mounting Rail) acc. to IEC 60715 |
| Rated Cross-Section | 0.5…2.5 mm² |
| Setting range | 0.05 s … 10 min |
| Terminal Type | Screw Terminals |
| Product Net Depth (MM) | 6.3 cm |
| Customs Tariff Number | 85364900 |
| Minimum Order Quantity | 1 |
| Temperature Range | -20…+60°C |
| GTIN (EAN) | 4.01361E+12 |
| L1 | |
| L2 | Switchgear & Contactors |
| L3 | Motor Starters (DOL / Star-Delta) |
| Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG |
| Contact Rating UL/CSA | B300 |
| Flammability According to UL94 | V-2 |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
| Minimum Switching Capacity | 12 V |
| Output | 2 N/O Contacts |
| Overvoltage Category | III |
| Package Level 1 Depth / Length | 2 cm |
| Package Level 1 Gross Weight | 79 g |
| Package Level 1 Height | 6.5 cm |
| Package Level 1 Width | 8.9 cm |
| Pilot Duty UL/CSA | B300 |
| Pollution Degree | 3 |
| Rated Control Supply Voltage (Us) | 24 … 240 V AC |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit 4 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Recommended Screw Driver | 0.8 x 4 |
| Short-Circuit Protective Devices | Output Circuit NC – F Type Fuses 6 A |
| Tightening Torque | 0.5 … 0.8 N·m |
| Tightening Torque UL/CSA | 4.43 … 7.08 in·lb |
| Timer Relay Type | Star-Delta |
| Wire Stripping Length | 7 mm |
