Additional information
| Weight | 100 g |
|---|---|

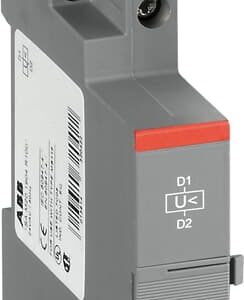

| Extended Product Type | UA1-24 |
| Standard | CSA 22.2 No. 14 |
| Mounting | 1 … 6 |
| Terminal type | Screw Terminals |
| Product Net Depth (MM) | 7.55 cm |
| Customs Tariff Number | 85365080 |
| Minimum Order Quantity | 1 |
| Temperature Range | -25…+60°C |
| GTIN (EAN) | 4.01361E+12 |
| resistance | 11 ms Pulse 15 g |
| L1 | Electrical |
| L2 | Switchgear & Contactors |
| L3 | Motor Starters (DOL / Star-Delta) |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 … 2.5 mm² |
| Connecting Capacity Auxiliary Circuit UL/CSA | Flexible 1/2x 16-12 AWG |
| Package Level 1 Depth / Length | 2.5 cm |
| Package Level 1 Gross Weight | 110 g |
| Package Level 1 Height | 8 cm |
| Package Level 1 Width | 9.3 cm |
| Package Level 2 Depth / Length | 39.5 cm |
| Package Level 2 Gross Weight | 9.175 kg |
| Package Level 2 Height | 21 cm |
| Package Level 2 Units | carton 80 piece |
| Package Level 2 Width | 28 cm |
| Power Loss | 15.5 W |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Rated Insulation Voltage (Ui) | 690 V |
| Recommended Screw Driver | Pozidriv 2 |
| Remarks | The mechanical and electrical durability of manual motor starters in combination with UA1/AA1 is reduced. Values are provided on request. |
| Tightening Torque | Auxiliary Circuit 0.8 … 1.2 N·m |
| Tightening Torque UL/CSA | Auxiliary Circuit 7 in·lb |
| Wire Stripping Length | Auxiliary Circuit 1 cm |
