Additional information
| Weight | 13 g |
|---|---|
| Dimensions | 26.5 × 45 × 12.5 cm |

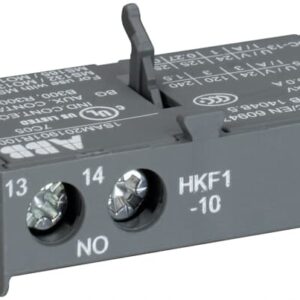

| Extended Product Type | HKF1-10 |
| Rated Voltage | 250V |
| Rated Frequency | DC |
| Mounting | 1 … 6 |
| Degree of Protection IP | IP20 |
| Terminal type | Screw Terminals |
| Product Net Depth (MM) | 2.65 cm |
| Customs Tariff Number | 85365080 |
| Minimum Order Quantity | 10 |
| Temperature Range | -25…+60°C |
| GTIN (EAN) | 4013614502620 |
| resistance | 5 g 3 … 150 Hz |
| _OG Title | HKF1-10 |
| A2L Certificate – IEC | 1SAA963000-4601 |
| CB Certificate | 1SAA963003-2002 |
| CCC Certificate | 2024010305656672 |
| CQC Certificate | CQC2017010304032779 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 … 1.5 mm² |
| Connecting Capacity Auxiliary Circuit UL/CSA | Flexible 1/2x 16-14 AWG |
| Contact Rating UL/CSA | B300 |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Declaration of Conformity - CCC | 2020980304001251 |
| Declaration of Conformity - CE | 1SAD101100-3410 |
| Declaration of Conformity - UKCA | 1SAD201100-3410 |
| Display Name | HKF1-10 |
| E-Number (Norway) | 4364294 |
| ETIM 10 | EC000041 – Auxiliary contact block |
| ETIM 9 | EC000041 – Auxiliary contact block |
| Electrical Durability | 100000 cycle |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
| Instructions and Manuals | 2CDC131011M6802 |
| Instructions and Manuals (Part 3) | 1SBC100214C0202 |
| LR Certificate | 1SAA963001-0501 |
| Maximum Operating Voltage UL/CSA | Main Circuit 250 V AC |
| Mechanical Durability | Nr. Operations 100000 cycle |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Object Classification Code | Q |
| Package Level 1 Depth / Length | 3.6 cm |
| Package Level 1 Gross Weight | 195 g |
| Package Level 1 Height | 5 cm |
| Package Level 1 Width | 14.8 cm |
| Package Level 2 Depth / Length | 39.5 cm |
| Package Level 2 EAN | 4013614522741 |
| Package Level 2 Gross Weight | 10.125 kg |
| Package Level 2 Height | 21 cm |
| Package Level 2 Units | carton 500 piece |
| Package Level 2 Width | 28 cm |
| Product ID | 1SAM201901R1003 |
| REACH Declaration | 1SAA963005-4502 |
| RINA Certificate | 1SAA963002-0802 |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Rated Insulation Voltage (Ui) | 250 V |
| Recommended Screw Driver | M3 |
| RoHS Declaration | 1SAA963006-4501 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Tightening Torque | Auxiliary Circuit 0.8 … 1.2 N·m |
| Tightening Torque UL/CSA | Auxiliary Circuit 7 in·lb |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| UL Certificate | UL_E137861 |
| UNSPSC | 39121522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Wire Stripping Length | Auxiliary Circuit 8 mm |
| eClass | V11.0 : 27371302 |
