7.00 AED

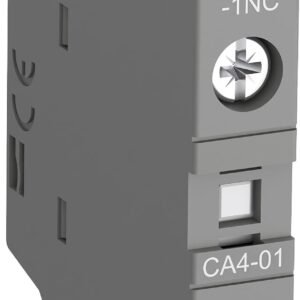

CA4-01 Auxiliary Contact Block
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | 7.00 AED |
| 6 - 10 | 6.86 AED |
| 11 - 50 | 6.72 AED |
| 51 - 200 | 6.58 AED |
| 200+ | 6.44 AED |
In stock
CA4-01 is a 1-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on AF(C)09(Z)(B)…96 contactors and NF(C)(Z)(B) contactor relays. CA4-01 is available with 1 N.C. instantaneous contacts for standard industrial environments.
| Weight | 14 g |
|---|---|
| Application | AF09 |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 … 2.5 mm² |
| Connecting Capacity Auxiliary Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWG |
| Country of Origin | Czechia |
| Criticality | No |
| Customs Tariff Number | 85389099 |
| Degree of Protection IP | IP20 |
| Extended Product Type | CA4-01 |
| GTIN (EAN) | 3471523130029 |
| L1 | Electrical |
| L2 | Switchgear & Contactors |
| L3 | Contactors |
| Maximum Electrical Switching Frequency | (AC-15) 1200 cycles per hour |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Minimum Order Quantity | 1 |
| Note | No |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 1P |
| Package Level 1 Depth / Length | 10 cm |
| Package Level 1 Gross Weight | 14 g |
| Package Level 1 Height | 1 cm |
| Package Level 1 Width | 10 cm |
| Package Level 2 Gross Weight | 10.08 kg |
| Package Level 2 Units | box 720 piece |
| Product Name | Auxiliary Contact Block |
| Product Net Depth (MM) | 3.95 cm |
| Rated Current | 16A |
| Rated Frequency | 50/60Hz |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 690 V |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A / 144 W |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 140 A |
| Rated Voltage | 690V |
| Standard | CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-5-1-14, IEC/EN 60947-5-1, UL 60335-2-40 LZGH2 A2L, UL 60947-5-1 |
| Technical Information | AF09-AF38 NC |
| Terminal type | Screw Terminals |
| Tightening Torque | Auxiliary Circuit 1.2 N·m |
| Tightening Torque UL/CSA | Auxiliary Circuit 11 in·lb |
| Wire Stripping Length | Auxiliary Circuit 1 cm |
