Description
DR4/6

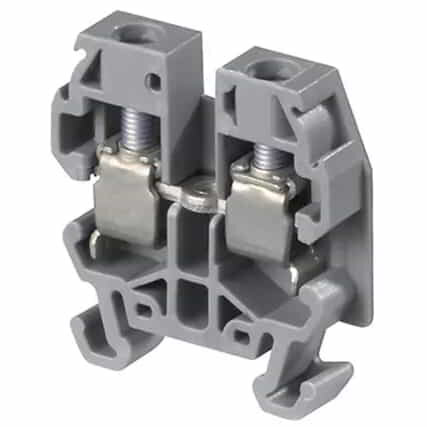

Entrelec DR4/6 'miniblock' screw-clamp feed-through terminal block, 4 mm² at 6 mm pitch, for compact mounting on EN 50045 / DIN 46277-2 (DIN2) miniature rail. Rated 30 A / 500 V IEC (250 V UL). Grey polyamide. Standards IEC 60947-7-1; UL 1059; CSA C22.2 No.158.
Key features
- Rated cross-section: 4 mm² (12 AWG)
- Rated current: 30 A (UL 25 A)
- Rated voltage Ui: 500 V (UL 250 V)
- Connection technology: Screw clamp
- Pitch / spacing: 6 mm
- Mounting rail: EN 50045 / DIN 46277-2 miniature rail (DIN2)
Full technical specifications are listed under Additional Information. Datasheet (PDF). Source: Entrelec Terminal Blocks M-series catalog.
