$515.45
XT5S 630 TMA 630-6300 4p F F InN=100%In
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | $515.45 |
| 6 - 10 | $505.14 |
| 11 - 50 | $494.83 |
| 51 - 200 | $484.52 |
| 200+ | $474.21 |
In stock

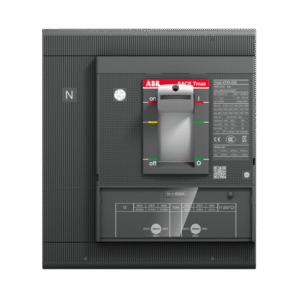

C.BREAKER TMAX XT5S 630 FIXED WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 630 I3=3150…6300 A NEUTRAL = 100% PHASES
| Weight | 5.6 kg |
|---|---|
| Dimensions | 10.35 × 18.6 × 20.5 cm |
| Extended Product Type | XT5S 630 TMA 630-6300 4p F F InN=100%In |
| Standard | IEC60947-2 |
| Number of Poles | 4P |
| Execution Type | TM |
| Rated Current | 630A |
| Rated Voltage | 690VAC |
| Breaking Capacity | 85KA |
| Trip Unit | TMA |
| Breaking Class | S |
| Setting range | 441…630 A |
| Terminal Type | Front |
| Product Net Depth (MM) | 10.35 cm |
| Customs Tariff Number | 85362090 |
| Minimum Order Quantity | 1 |
| GTIN (EAN) | 8.05622E+12 |
| L1 | |
| L2 | Switchgear & Contactors |
| L3 | Moulded Case Circuit Breakers (MCCB) |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Circuit Breaker Type to be Associated | Power Distribution |
| Current Type | AC/DC |
| Electrical Durability | 5000 cycle |
| Extended Product Lifetime | Product Modularity |
| Mechanical Durability | 20000 cycle |
| Package Level 1 Depth / Length | 28.5 cm |
| Package Level 1 Gross Weight | 6.088 kg |
| Package Level 1 Height | 24.5 cm |
| Package Level 1 Width | 25 cm |
| Power Loss | 47.8 W |
| Product Name | Moulded Case Circuit Breaker |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 3150…6300 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | 6 kA |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops – Standard EN45555 – 61.4 % |
