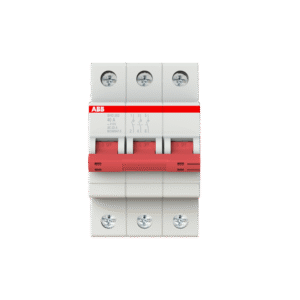

SHD203/40 Switch Disconnector 3P, 40A
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | $0.00 |
| 6 - 10 | $0.00 |
| 11 - 50 | $0.00 |
| 51 - 200 | $0.00 |
| 200+ | $0.00 |
SHD203/40 – Switch Disconnector 3P, 40A
| Weight | 225 g |
|---|---|
| Dimensions | 6.9 × 5.25 × 8.5 cm |
| Extended Product Type | SHD203/40 |
| Number of Poles | 3P |
| Rated Current | 40A |
| Rated Voltage | 415V |
| Rated Frequency | 50/60Hz |
| Breaking Capacity | 25KA |
| Frame size | acc. to DIN 43880 3 |
| Material | Insulation group I, RAL 7035 |
| Color | grey |
| Mounting | DIN-Rail |
| Degree of Protection IP | IP20 |
| Mounting Type | DIN-Rail |
| Rated Cross-Section | 0.75…1.6 cm² |
| Terminal Type | Screw Terminals |
| Product Net Depth (MM) | 6.9 cm |
| Minimum Order Quantity | 1 |
| Temperature Range | -25…+55°C |
| DIN Place Units | 3 |
| GTIN (EAN) | 4.01678E+12 |
| Resistance | 20 Cycles with Load 0.8 In: 5 g 5 … 150 … 5 Hz |
| Surge protection | 4 kV |
| L1 | |
| L2 | Switchgear & Contactors |
| L3 | Disconnect Switches |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Accessories Available | No |
| Actuator Marking | I / O |
| Actuator Type | Toggle |
| Electrical Endurance | 10000 AC cycle |
| Extended Product Lifetime | Product Durability |
| Input Voltage Type | AC |
| Mechanical Endurance | 20000 cycle |
| Number of Contacts CO | 0 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 3 |
| Overvoltage Category | III |
| Package Level 1 Gross Weight | 240 g |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 2.53 W |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Recommended Screw Driver | Pozidriv 2 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops – Standard EN45555 – 83.9 % |
| Switch Type | Off |
| Tightening Torque | 2 N·m |
| Utilization Category | Switching of mixed resistive and inductive loads, including moderate overloads – frequent actuation (AC-22A) |
