Additional information
| Weight | 292 g |
|---|---|
| Dimensions | 11.41 × 2.25 × 11.96 cm |
| Color | black yellow |
| Degree of Protection IP | IP20 |
| Execution Type | 27-37-18-19 |
| Inrush current | 750 mA / 5 ms (for starting with S33/S34 (start circuit)) 2 A / 20 ms (for starting with A1/A2 (autostart)) |
| L1 | Automation & Control |
| L2 | Safety & Machine Guarding |
| L3 | Safety Relays & Controllers |
| Minimum Order Quantity | 1 |
| Mounting | TS 35 |
| Mounting Type | din |

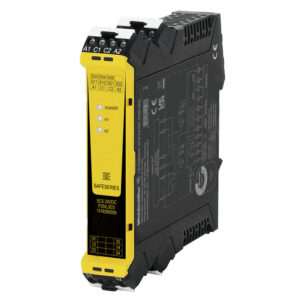

| Product Type | Device for monitoring of safety-related circuits |
| Protection | 2 |
| Rated Cross-Section | 0.13 mm² Р2.5 mm² |
| Rated Current | 2A |
| Rated Residual Current | 35mA |
| Rated Voltage | 300V |
| Row Spacing | 8 mm |
| Setting range | 8 mm |
| Surge protection | 6 kV (1.2/50 µs) |
| Temperature Range | -25C…55C |
| Terminal Type | Screw connection |
