Description
SAFESERIES, Safety relay,24 V DC -15 / +20%, 35 mA , Max. switching current, internal fuse : 5 A (refer to derating curve), SIL 3, DIN EN 61508

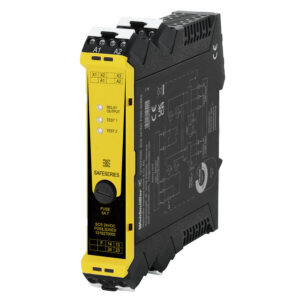

SCS 24VDC P2SIL3DSES 1319270000 Safety Relays & Controllers
674.00 AED
On OrderBulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | 674.00 AED |
| 6 - 10 | 660.52 AED |
| 11 - 50 | 647.04 AED |
| 51 - 200 | 633.56 AED |
| 200+ | 620.08 AED |
Out of stock
- ✅ Free global shipping on all orders
- ✅ 30 days easy returns if you change your mind
- ✅ Order before noon for same day dispatch
Guaranteed Safe Checkout
Description
Additional information
Additional information
| Weight | 200 g |
|---|---|
| Color | black yellow |
| Degree of Protection IP | IP20 |
| Execution Type | 27-37-18-19 |
| Inrush current | ≤ 80 mA / 40 ms |
| Minimum Order Quantity | 1 |
| Mounting | TS 35 |
| Mounting Type | din |
| Product Type | Device for monitoring of safety-related circuits |
| Protection | 2 |
| Rated Cross-Section | 0.13 mm² Р2.5 mm² |
| Rated Current | 5A |
| Rated Residual Current | 35mA |
| Rated Voltage | 300V |
| Row Spacing | 8 mm |
| Setting range | 8 mm |
| Surge protection | 6 kV (1.2/50 µs) |
| Temperature Range | -25C…50C |
| Terminal Type | Screw connection |
