Description

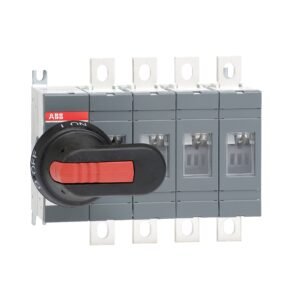

4-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit included
OT250E04P
561.00 AED
OT250E04P SWITCH-DISCONNECTOR
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | 561.00 AED |
| 6 - 10 | 549.78 AED |
| 11 - 50 | 538.56 AED |
| 51 - 200 | 527.34 AED |
| 200+ | 516.12 AED |
In stock
- ✅ Free global shipping on all orders
- ✅ 30 days easy returns if you change your mind
- ✅ Order before noon for same day dispatch
Guaranteed Safe Checkout
Description
Additional information
Additional information
| Weight | 1.9 kg |
|---|---|
| Dimensions | 8.25 × 18.05 × 15 cm |
| Extended Product Type | OT250E04P |
| Standard | IEC 60947-3 |
| Number of Poles | 4P |
| Rated Current | 250A |
| Rated Voltage | 1000V |
| Color | grey |
| Mounting | Base mounting |
| Row Spacing | Standard |
| Degree of Protection IP | IP00 |
| Mounting Type | Base mounting |
| Terminal Type | Lug terminals |
| Product Net Depth (MM) | 8.25 cm |
| Customs Tariff Number | 85365080 |
| Minimum Order Quantity | 1 |
| Operating mode | Front |
| GTIN (EAN) | 6417019225982 |
| Country of Origin | Finland |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched – Simultaneous Function |
| Mechanical Durability | 20000 |
| Package Level 1 Depth / Length | 19 cm |
| Package Level 1 Gross Weight | 2.1 kg |
| Package Level 1 Height | 14.5 cm |
| Package Level 1 Width | 17 cm |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In – Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (315 A fuse, 500 V) 100 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 … 415 V) 250 A |
| Rated Operational Current AC-22A (Ie) | (380 … 415 V) 250 A |
| Rated Operational Current AC-23A (Ie) | (380 … 415 V) 250 A |
| Rated Operational Power AC-23A (Pe) | (220 … 240 V) 75 kW |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Special Functions | No |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Terminal Width | 2 cm |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
