Description

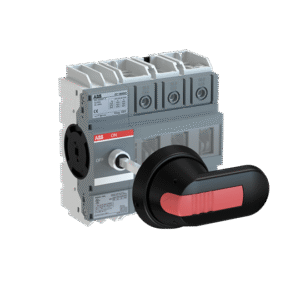

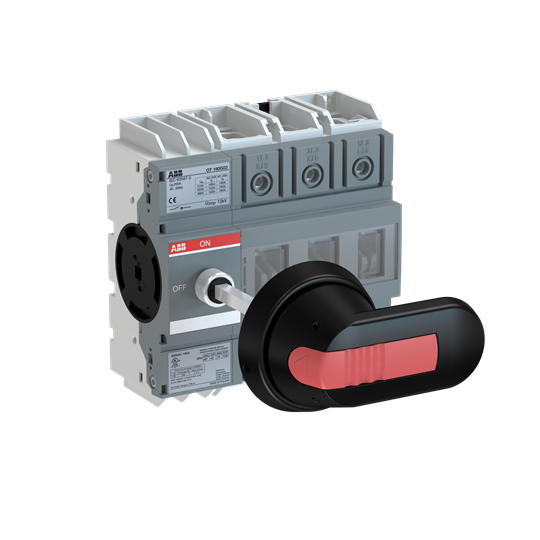

3-pole, front operated, base mounted switch-diconnector with protected clamp terminals and with black IP65 handle and shaft
OT160G03P SWITCH-DISCONNECTOR
271.00 AED
OT160G03P SWITCH-DISCONNECTOR
Not held in stock. We order it from the manufacturer, and the lead time — about 2 months on average — starts once they confirm the order.Subject to the manufacturer's final confirmation.
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | 271.00 AED |
| 6 - 10 | 265.58 AED |
| 11 - 50 | 260.16 AED |
| 51 - 200 | 254.74 AED |
| 200+ | 249.32 AED |
In stock
- Free delivery in the UAE over 150.00 AED, worldwide over 5,000.00 AED
- Prices exclude VAT — VAT is shown at checkout, and exports are zero‑rated
- 15 days to return it if it is not right
- Need project or volume pricing? Use Add to Quote and our team will price it
Description
Additional information
Additional information
| Weight | 900 g |
|---|---|
| Dimensions | 7.3 × 12.3 × 13 cm |
| Extended Product Type | OT160G03P |
| Standard | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Number of Poles | 3P |
| Rated Current | 125A |
| Rated Voltage | 1000V |
| Color | grey |
| Mounting | Base mounting |
| Row Spacing | Standard |
| Degree of Protection IP | IP20 |
| Mounting Type | Base mounting |
| Rated Cross-Section | 10…70mm² |
| Terminal Type | Screw Terminals |
| Product Net Depth (MM) | 7.3 cm |
| Customs Tariff Number | 85365080 |
| Minimum Order Quantity | 1 |
| Operating mode | Front and Side |
| GTIN (EAN) | 6417019638706 |
| Country of Origin | Finland |
| Horsepower Rating UL/CSA | (240 V AC) Single Phase 20 Hp |
| Maximum Operating Voltage UL/CSA | 600 V |
| Mechanical Durability | 20000 |
| Package Level 1 Depth / Length | 24.4 cm |
| Package Level 1 Gross Weight | 1 kg |
| Package Level 1 Height | 9.6 cm |
| Package Level 1 Width | 16 cm |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In – Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (200 A fuse, 500 V) 100 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 … 415 V) 160 A |
| Rated Operational Current AC-22A (Ie) | (380 … 415 V) 160 A |
| Rated Operational Current AC-23A (Ie) | (380 … 415 V) 160 A |
| Rated Operational Power AC-23A (Pe) | (220 … 240 V) 45 kW |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 12 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 4 kA |
| Special Functions | No |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Tightening Torque UL/CSA | 53 in·lb |
