Additional information
| Weight | 9.4 kg |
|---|---|
| Dimensions | 18 × 25 × 40 cm |

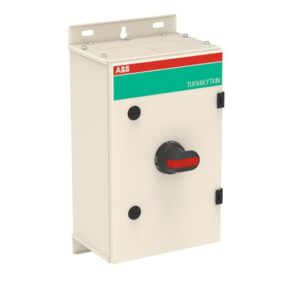

| Extended Product Type | OT125GLCC3TZ |
| Standard | -3, IEC 60947-1 |
| Number of Poles | 3P |
| Rated Current | 125A |
| Rated Voltage | 1000V |
| Material | Steel sheet |
| Color | RAL7032 |
| Degree of Protection IP | IP65 |
| Rated Cross-Section | 10…7 cm² |
| Terminal Type | Screw Terminals |
| Product Net Depth (MM) | 18 cm |
| Customs Tariff Number | 85363030 |
| Minimum Order Quantity | 1 |
| GTIN (EAN) | 6.41702E+12 |
| Resistance | Housing IK09 |
| L1 | Mechanical |
| L2 | Enclosures & Cabinets |
| L3 | Weatherproof Boxes (IP65, IP66, IP67+) |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | C-flange / C-flange, Knock-outs: 1 cm, 1.25 cm, 2.05 cm, 2.55 cm |
| Country of Origin | Finland |
| Handle Type | Pistol |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Package Level 1 Depth / Length | 51 cm |
| Package Level 1 Gross Weight | 10.5 kg |
| Package Level 1 Height | 26.5 cm |
| Package Level 1 Width | 29.5 cm |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In – Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 6.3 W |
| Rated Conditional Short-Circuit Current (Inc) | 24 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 … 415 V) 125 A |
| Rated Operational Current AC-23A (Ie) | (380 … 415 V) 125 A |
| Rated Operational Power AC-23A (Pe) | (380 … 415 V) 55 kW |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 12 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 4 kA |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | Main Circuit 6 N·m |
| Wire Stripping Length | 2 cm |
