Additional information
| Weight | 1.235 kg |
|---|---|
| Dimensions | 13.3 × 10 × 15 cm |

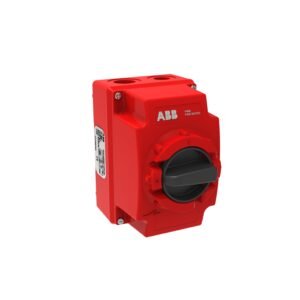

| Extended Product Type | OKA20S3B1F400 |
| Standard | -3, IEC 60947-1 |
| Number of Poles | 3P |
| Rated Current | 20A |
| Rated Voltage | 690V |
| Material | Aluminium |
| Color | RAL3001 |
| Degree of Protection IP | IP65 |
| Rated Cross-Section | 1 cm² |
| Terminal Type | Screw Terminals |
| Product Net Depth (MM) | 13.3 cm |
| Customs Tariff Number | 85363030 |
| Minimum Order Quantity | 1 |
| GTIN (EAN) | 6.41702E+12 |
| L1 | |
| L2 | Switchgear & Contactors |
| L3 | Disconnect Switches |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | M20+M25 / M20+M25 |
| Country of Origin | United Kingdom |
| Handle Type | Selector |
| Maximum Mounted Auxiliary Contacts | 2 NO, 0 NC |
| Mounted Auxiliary Contacts | 2 NO, 0 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 2 |
| Package Level 1 Depth / Length | 10.5 cm |
| Package Level 1 Gross Weight | 1.3 kg |
| Package Level 1 Height | 16.8 cm |
| Package Level 1 Width | 14.5 cm |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In – Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 1.6 W |
| Rated Conditional Short-Circuit Current (Inc) | 50 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 690 V |
| Rated Operational Current AC-22A (Ie) | (380 … 415 V) 20 A |
| Rated Operational Current AC-23A (Ie) | (380 … 415 V) 20 A |
| Rated Operational Power AC-23A (Pe) | (380 … 415 V) 9.5 kW |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Switches Operating Mechanism | On the Front of the Switch |
| Tightening Torque | Main Circuit 1.2 N·m |
