Additional information
| Weight | 970 g |
|---|---|
| Dimensions | 12.21 × 5.5 × 14.27 cm |

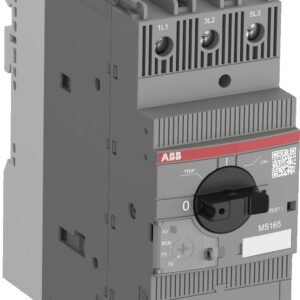

| Extended Product Type | MS165-32 |
| Standard | CSA 22.2 No. 14 |
| Number of Poles | 3P |
| Rated Current | 32A |
| Rated Voltage | 690VAC |
| Rated Power | 15kW |
| Rated Frequency | 50Hz |
| Breaking Capacity | 100KA |
| Mounting | 1 … 6 |
| Row Spacing | Electrical Conductive Board, Horizontal – Up to 1000 V 1.5 mm |
| Degree of Protection IP | IP20 |
| Tripping Characteristic | 1SAM400505F0004 |
| Mounting Type | TH35-15 (35 x 1.5 cm Mounting Rail) acc. to IEC 60715 |
| Rated Cross-Section | 1…3.5 cm² |
| Setting range | 23…32A |
| Terminal Type | Screw Terminals |
| Product Net Depth (MM) | 12.21 cm |
| Customs Tariff Number | 85362010 |
| Minimum Order Quantity | 1 |
| Temperature Range | -25…+70°C |
| GTIN (EAN) | 4.01361E+12 |
| Status indicator | ON / OFF / TRIP |
| Resistance | Mounted on Mounting Plate: 5 g 3 … 150 Hz |
| L1 | |
| L2 | Switchgear & Contactors |
| L3 | Motor Starters (DOL / Star-Delta) |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Actuator Type | Rotary Handle |
| Ambient Air Temperature Compensation | Yes |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 16-0 AWG |
| Electrical Durability | 25000 cycle |
| Full Load Amps Motor Use | (200 V AC) Three Phase 25.3 A |
| General Use Rating UL/CSA | (600 V AC) 32 A |
| Horsepower Rating UL/CSA | (200 V AC) Three Phase 7.5 Hp |
| Improved Energy Efficiency for Customers | Product Efficiency – Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Locked Rotor Amps | (200 V AC) Three Phase 146 A |
| Maximum Operating Altitude Permissible | 2000 m |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Mechanical Durability | Nr. Operations 50000 cycle |
| Package Level 1 Depth / Length | 17.7 cm |
| Package Level 1 Gross Weight | 1.1 kg |
| Package Level 1 Height | 14 cm |
| Package Level 1 Width | 6.4 cm |
| Package Level 2 Depth / Length | 40 cm |
| Package Level 2 Gross Weight | 13 kg |
| Package Level 2 Height | 32 cm |
| Package Level 2 Units | carton 12 piece |
| Package Level 2 Width | 33 cm |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 2.27 … 4.40 W |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 480 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-3e (Ie) | 32 A |
| Rated Operational Current DC-5 (Ie) | 32 A |
| Recommended Screw Driver | Pozidriv 2 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops – Standard EN45555 – 93.1 % |
| Tightening Torque | Main Circuit 4 N·m |
| Tightening Torque UL/CSA | Main Circuit 35 in·lb |
| Wire Stripping Length | Main Circuit 1.6 cm |
