Additional information
| Weight | 114 g |
|---|---|
| Dimensions | 6.2 × 1.8 × 8.5 cm |

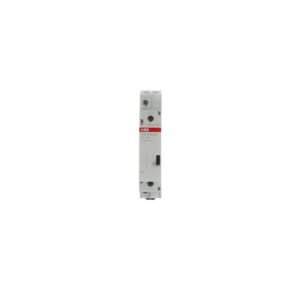

| Extended Product Type | E290-16-10/230 |
| Standard | IEC/EN 60669-1 |
| Rated Current | 16A |
| Rated Voltage | 253VAC |
| Rated Frequency | 50Hz |
| Color | grey |
| Mounting | DIN-Rail |
| Application | Mechanical latching relay |
| Mounting Type | DIN-Rail |
| Rated Cross-Section | 1…1 cm² |
| Product Net Depth (MM) | 6.2 cm |
| Minimum Order Quantity | 10 |
| Temperature Range | -25…+55°C |
| DIN Place Units | 1 |
| GTIN (EAN) | 7.61227E+12 |
| Contact type | Normally Open (NO) |
| L1 | |
| L2 | Safety & Machine Guarding |
| L3 | Safety Relays & Controllers |
| Climate Class Reference Standard | IEC 60068-2-2 – Deals with dry heat tests applicable both to heat-dissipating and non heat-dissipating specimens |
| Coil Consumption | Control Voltage V AC 230 V AC |
| Impulse Duration | Minimum 50 ms |
| Input Voltage Type | AC |
| Maximum Switching Current | cos phi = 0.6 16 A |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Contacts NO | 1 |
| Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 1 |
| Package Level 1 Gross Weight | 1.216 kg |
| Power Loss | Total 0.32 W |
| Rated Control Circuit Voltage (Uc) | 230 V AC |
| Rated Control Supply Voltage (Us) | 250 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Insulation Voltage (Ui) | 230 V AC |
| Response Time | <3 ms |
| Sound dB (A) | (@distance 1 m) 60 dB |
| Tightening Torque | 1.2 – 1.5 N·m |
