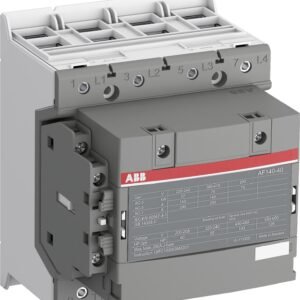

AF140-40-11-13 1SFL447101R1311 Contactors

Name: AF140-40-11-13 1SFL447101R1311 Contactors
Brand: ABB
SKU: 1SFL447101R1311
Price: 1763.00 AED
Availability: InStock

1,763.00 AED

AF140-40-11-13 Contactor

In Stock

Bulk Pricing

Quantity	Price
1 - 5	1,763.00 AED
6 - 10	1,727.74 AED
11 - 50	1,692.48 AED
51 - 200	1,657.22 AED
200+	1,621.96 AED

Only 2 left in stock

Add to Quote

SKU: 1SFL447101R1311 Category: Contactors Tags: Contactors, Electrical, Switchgear & Contactors Brands: ABB

✅ Free global shipping on all orders
✅ 30 days easy returns if you change your mind
✅ Order before noon for same day dispatch

Guaranteed Safe Checkout

Description

The AF140-40-11-13 is a 4 pole – 690 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and double clamp, controlling motors up to 75 kW / 400 V AC (AC-3) / and switching power circuits up to 200 A (AC-1) or 175 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Additional information

Weight	2.05 kg
Dimensions	12.8 × 12 × 15 cm
Extended Product Type	AF140-40-11-13
Number of Poles	4P
Rated Current	200A
Rated Voltage	690V
Rated Power	75kW
Rated Frequency	60Hz
Breaking Capacity	100A
Frame size	4
Degree of Protection IP	IP40
Rated Cross-Section	10…70mm²
Terminal Type	Double Clamp
Product Net Depth (MM)	12.8 cm
Customs Tariff Number	85364900
Minimum Order Quantity	1
Temperature Range	-25…50°C
GTIN (EAN)	7320500503744
ABB EcoSolutions	Yes
ABB Site Meeting Group Waste To Landfill Target	Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
Coil Consumption	Holding at Max. Rated Control Circuit Voltage 50 Hz 30.7 V·A
Coil Operating Limits	(acc. to IEC 60947-4-1) 0.85 x Uc Min. … 1.1 x Uc Max. (at θ ≤ 70 °C)
Connecting Capacity Auxiliary Circuit	Flexible with Ferrule 2x 0.75 … 2.5 mm²
General Use Rating UL/CSA	(600 V AC) 200 A
Horsepower Rating NEMA	(200 V AC) Three Phase 40 Hp
Horsepower Rating UL/CSA	(200 … 208 V AC) Three Phase 15 Hp
Improved Energy Efficiency for Customers	Product Efficiency – Product requires less energy to operate compared to similar product on market or older products from the same line
Maximum Electrical Switching Frequency	(AC-1) 300 cycles per hour
Maximum Mechanical Switching Frequency	300 cycles per hour
Maximum Operating Altitude Permissible	Without Derating 3000 m
Maximum Operating Voltage UL/CSA	Main Circuit 600 V
Mechanical Durability	5 million
Number of Auxiliary Contacts NC	1
Number of Auxiliary Contacts NO	1
Number of Main Contacts NC	0
Number of Main Contacts NO	4
Operate Time	Between Coil De-energization and NO Contact Opening 40 … 70 ms
Package Level 1 Depth / Length	19.7 cm
Package Level 1 Gross Weight	2.25 kg
Package Level 1 Height	15.5 cm
Package Level 1 Width	14.7 cm
Power Loss	at Rated Operating Conditions per Pole 18 W
Product Name	Block Contactor
Rated Breaking Capacity AC-3	8 x Ie AC-3
Rated Breaking Capacity AC-3e	8.5 x Ie AC-3e
Rated Control Circuit Voltage (Uc)	50 Hz 100 … 250 V
Rated Impulse Withstand Voltage (Uimp)	Main Circuit 8 kV
Rated Insulation Voltage (Ui)	acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
Rated Making Capacity AC-3	10 x Ie AC-3
Rated Making Capacity AC-3e	12 x Ie AC-3e
Rated Short-time Withstand Current Low Voltage (Icw)	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 200 A
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops – Standard EN45555 – 87.8 %
Short-Circuit Protective Devices	gG Type Fuses 250 A
Tightening Torque	Cable Lug 9 N·m
