Description
JB10-2

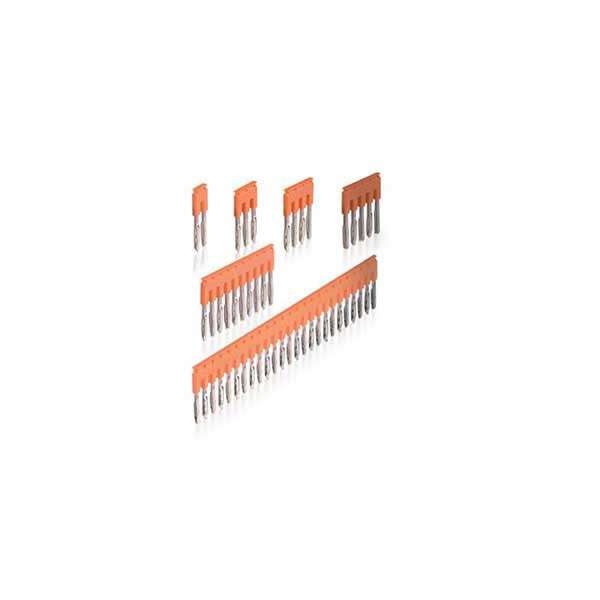

Entrelec JB10-2 insulated jumper bar (cross-connector) for 1 cm-pitch terminal blocks, bridging 2 adjacent poles of 10 mm² (1 cm) feed-through blocks. Screwless plug-in, orange polyamide body with IP20 protection, rated 76 A (UL 67 A) per pole. Standards IEC 60947-7-1.
Key features
- Type: Insulated jumper bar (cross-connector), 2-pole
- For block pitch: 1 cm — fits SNK/ZS/M 10 mm² (1 cm) blocks
- Poles: 2
- Rated current (per pole): 76 A (UL 67 A)
- Mounting: screwless plug-in
- Rated voltage: 1000 V IEC / 600 V UL-CSA
Full technical specifications are listed under Additional Information. Datasheet (PDF). Source: Entrelec Terminal Blocks SNK catalog.
