Additional information
| Weight | 12 kg |
|---|---|
| Dimensions | 103.5 × 280 × 2.68 m |

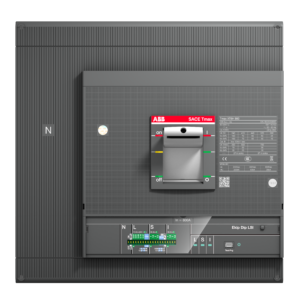

| Extended Product Type | XT6S 800 Ekip Dip LS/I In=630 4p F F |
| Standard | IEC60947-2 |
| Number of Poles | 4P |
| Execution Type | EL |
| Rated Current | 630A |
| Rated Voltage | 690VAC |
| Rated Frequency | 50/60Hz |
| Breaking Capacity | 85kA |
| Trip Unit | Ekip Dip LS/I |
| Breaking Class | S |
| Terminal type | Front |
| Product Net Depth (MM) | 10.35 cm |
| Customs Tariff Number | 85362090 |
| Minimum Order Quantity | 1 |
| GTIN (EAN) | 8015644102364 |
| _OG Title | XT6S 800 Ekip Dip LS/I In=630 4p F F |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Circuit Breaker Type to be Associated | Power Distribution |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Current Type | AC |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| Declaration of Conformity - CE | 9AKK107680A2825 |
| Display Name | XT6S 800 Ekip Dip LS/I In=630 4p F F |
| E-Number (Finland) | 3641880 |
| E-Number (Norway) | 4380587 |
| ETIM 10 | EC000228 – Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 – Power circuit-breaker for trafo/generator/installation protection |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Electrical Durability | 5000 cycle |
| End Of Life Disassembling Instructions | 9AKK108468A2356 |
| Environmental Information | 9AKK108467A6707 |
| Environmental Product Declaration - EPD | 9AKK108468A9752 |
| Extended Product Lifetime | Product Modularity |
| Instructions and Manuals | 1SDH002012A1001 |
| Mechanical Durability | 20000 cycle |
| Order Code US and Canada | XT6SE4630EFF000XXX |
| Package Level 1 Depth / Length | 37 cm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 Height | 28.5 cm |
| Package Level 1 Width | 30.5 cm |
| Power Loss | 33.2 W |
| Product ID | 1SDA107583R1 |
| Product Name | Moulded Case Circuit Breaker |
| REACH Declaration | 9AKK108466A1425 |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | 10 kA |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops – Standard EN45555 – 60 % |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | c7536c1d-6485-4a72-8a6e-4cebcb2e4a7a China |
| Simplified SCIP | 2b16368e-a92a-49b8-b3f2-f75a9d3e1bae Croatia |
| Suitable for Product Class | SACE Tmax XT |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Wiring Diagram | 1SDM000005A1001 |
| eClass | V11.1 : 27370409 |
