$81.00
XT2N 160 MA 100 Im=600…1400 3p F F
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | $81.00 |
| 6 - 10 | $79.38 |
| 11 - 50 | $77.76 |
| 51 - 200 | $76.14 |
| 200+ | $74.52 |
Only 1 left in stock

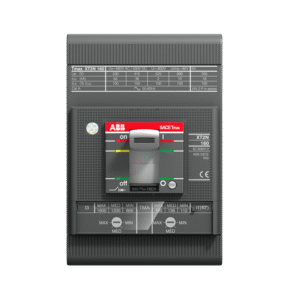

C.BREAKER TMAX XT2N 160 FIXED THREE-POLE WITH FRONT TERMINALS AND MAGNETIC RELEASE MA Iu 100 A I3=600…1400 A
| Weight | 1.1 kg |
|---|---|
| Dimensions | 8.25 × 9 × 13 cm |
| Extended Product Type | XT2N 160 MA 100 Im=600…1400 3p F F |
| Standard | IEC60947-2 |
| Number of Poles | 3P |
| Execution Type | M |
| Rated Current | 100A |
| Rated Voltage | 690V |
| Rated Frequency | 50/60Hz |
| Breaking Capacity | 65KA |
| Trip Unit | MA |
| Breaking Class | N |
| Rated Cross-Section | 32.5…10 cm² |
| Terminal Type | Bolt |
| Product Net Depth (MM) | 8.25 cm |
| Customs Tariff Number | 85362090 |
| Minimum Order Quantity | 1 |
| GTIN (EAN) | 8.01564E+12 |
| L1 | |
| L2 | Switchgear & Contactors |
| L3 | Moulded Case Circuit Breakers (MCCB) |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Circuit Breaker Type to be Associated | Motor Protection |
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour |
| Extended Product Lifetime | Product Modularity |
| Mechanical Durability | 240 cycles per hour |
| Opening Time | CB with SOR 30 ms |
| Package Level 1 Depth / Length | 14.7 cm |
| Package Level 1 Gross Weight | 1.2 kg |
| Package Level 1 Height | 21.2 cm |
| Package Level 1 Width | 13.1 cm |
| Power Loss | at Rated Operating Conditions per Pole 8.08 W |
| Product Name | Moulded Case Circuit Breaker |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 600…1400 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Recommended Screw Driver | Main Circuit M6 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops – Standard EN45555 – 55.70 % |
| Tightening Torque | 6 N·m |
