Description
TERMSERIES, Solid-state relay, Rated control voltage: 24 V DC ±20 % , Rated switching voltage: 3…33 V DC, Continuous current: 2 A, Tension-clamp connection

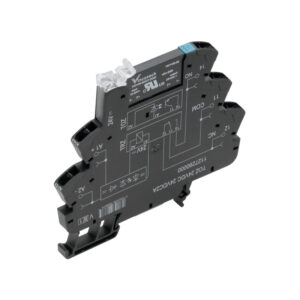

TOZ 24VDC ACT 1391690000 Optocouplers & Photocouplers
68.00 AED
On OrderBulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | 68.00 AED |
| 6 - 10 | 66.64 AED |
| 11 - 50 | 65.28 AED |
| 51 - 200 | 63.92 AED |
| 200+ | 62.56 AED |
Out of stock
- Free delivery in the UAE over 150.00 AED, worldwide over 5,000.00 AED
- Prices exclude VAT — VAT is shown at checkout, and exports are zero‑rated
- 15 days to return it if it is not right
- Need project or volume pricing? Use Add to Quote and our team will price it
Description
Additional information
Additional information
| Weight | 29 g |
|---|---|
| Color | black |
| Contact type | 1 NO contact (MOS-FET) |
| Degree of Protection IP | IP20 |
| Execution Type | 27-37-16-04 |
| Inrush current | 15 A / 10 ms |
| Minimum Order Quantity | 10 |
| Mounting | TS 35 |
| Product Type | Optocoupler |
| Protection | 2 |
| Rated Cross-Section | 0.14 mm² – 2.5 mm² |
| Rated Current | 2A |
| Rated Residual Current | 2mA |
| Rated Voltage | 33V |
| Row Spacing | 8 mm |
| Setting range | 8 mm |
| Surge protection | 6 kV (1.2/50 µs) |
| Temperature Range | -20C…60C |
| Terminal Type | Tension-clamp connection |
