TF42-10 1SAZ721201R1043 Overload Relays
ABB

RELAY TF42-10 THERMAL OVERLOAD

62.00 AED

TF42-10 Thermal Overload Relay 7.6 … 10 A

In Stock

Bulk Pricing

QuantityPrice
1 - 5 62.00 AED
6 - 10 60.76 AED
11 - 50 59.52 AED
51 - 200 58.28 AED
200+ 57.04 AED

Only 1 left in stock

Add to Quote
SKU: 1SAZ721201R1043 Category: Tags: , , Brands:
  • ✅ Free global shipping on all orders
  • ✅ 30 days easy returns if you change your mind
  • ✅ Order before noon for same day dispatch
Guaranteed Safe Checkout

Description

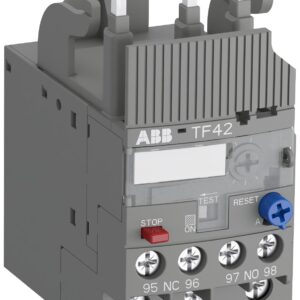

The TF42-10 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP function and a trip indication. The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory.

Additional information

Weight130 g
ABB EcoSolutions

Yes

ABB Site Meeting Group Waste To Landfill Target

UL 2799 Zero Waste To Landfill Validation available

Ambient Air Temperature Compensation

Yes

Application

AF09

Connecting Capacity Auxiliary Circuit

Flexible with Ferrule 1/2x 0.75 … 2.5 mm²

Connecting Capacity Auxiliary Circuit UL/CSA

Flexible 1/2x 18-12 AWG

Connecting Capacity Main Circuit UL/CSA

Flexible 1/2x 18-10 AWG

Contact Rating UL/CSA

(NC:) B600

Country of Origin

Germany

Customs Tariff Number

85364900

Degree of Protection IP

IP20

Extended Product Type

TF42-10

GTIN (EAN)

4013614398124

Improved Energy Efficiency for Customers

Product Efficiency – Product considered more energy-efficient compared to similar product on market or older products from the same line

L1

Electrical

L2

Switchgear & Contactors

L3

Overload Relays

Maximum Operating Altitude Permissible

2000 m

Maximum Operating Voltage UL/CSA

Main Circuit 600 V AC

Minimum Order Quantity

1

Number of Auxiliary Contacts NC

1

Number of Auxiliary Contacts NO

1

Number of Poles

3P

Package Level 1 Depth / Length

7.8 cm

Package Level 1 Gross Weight

145 g

Package Level 1 Height

9.2 cm

Package Level 1 Width

4.8 cm

Package Level 2 Depth / Length

39.5 cm

Package Level 2 Gross Weight

7.346 kg

Package Level 2 Height

21 cm

Package Level 2 Units

carton 40 piece

Package Level 2 Width

28 cm

Pollution Degree

3

Power Loss

at Rated Operating Conditions per Pole 1.1 … 2.0 W

Product Net Depth (MM)

7.05 cm

Rated Cross-Section

0.75…4 mm²

Rated Current

10A

Rated Frequency

50Hz

Rated Impulse Withstand Voltage (Uimp)

Auxiliary Circuit 6 kV

Rated Insulation Voltage (Ui)

690 V

Rated Operational Current AC-15 (Ie)

(120 V) NC 3 A

Rated Operational Current DC-13 (Ie)

(125 V) NC 0.55 A

Rated Voltage

600VAC

Recommended Screw Driver

Main Circuit Pozidriv 2

Recyclability Rate of the Product acc. to EN45555

Design for Closing Resource Loops – Standard EN45555 – 65 %

resistance

5 g 3 … 150 Hz

Setting range

7.6…10A

Standard

IEC/EN 60947-1

Temperature Range

-25…+60°C

Tightening Torque

Auxiliary Circuit 1 … 1.2 N·m

Tightening Torque UL/CSA

Auxiliary Circuit 9 … 11 in·lb

Tripping Characteristic

1SAZ700506F0016

Wire Stripping Length

Auxiliary Circuit 9 mm
