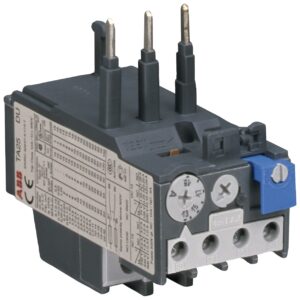

TA25DU-25 1SAZ211201R1051 Overload Relays
ABB

TA25DU-25 THERMAL OVERLOAD RELAY 18…25A

67.28 AED

TA25DU-25 Thermal Overload Relay 18 … 25 A

On Order
Not held in stock. We order it from the manufacturer, and the lead time — about 2 months on average — starts once they confirm the order.Subject to the manufacturer's final confirmation.

Bulk Pricing

QuantityPrice
1 - 5 67.28 AED
6 - 10 65.93 AED
11 - 50 64.59 AED
51 - 200 63.24 AED
200+ 61.90 AED

Out of stock

Add to Quote
SKU: 1SAZ211201R1051 Category: Tags: , , Brands:
  • Free delivery in the UAE over 150.00 AED, worldwide over 5,000.00 AED
  • Prices exclude VAT — VAT is shown at checkout, and exports are zero‑rated
  • 15 days to return it if it is not right
  • Need project or volume pricing? Use Add to Quote and our team will price it

Description

The TA25DU-25 thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10A. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory.

Additional information

Weight170 g
Ambient Air Temperature Compensation

Yes

Connecting Capacity Main Circuit UL/CSA

Flexible 1/2x 16-8 AWG

Connecting Capacity Auxiliary Circuit

Flexible with Ferrule 1/2x 0.75 … 2.5 mm²

Connecting Capacity Auxiliary Circuit UL/CSA

Flexible 1/2x 18-14 AWG

Contact Rating UL/CSA

(NC:) B600

Country of Origin

Germany

Maximum Operating Altitude Permissible

2000 m

Maximum Operating Voltage UL/CSA

Main Circuit 600 V AC

Number of Auxiliary Contacts NC

1

Number of Auxiliary Contacts NO

1

Package Level 1 Depth / Length

4.7 cm

Package Level 1 Gross Weight

190 g

Package Level 1 Height

8.2 cm

Package Level 1 Width

9.8 cm

Package Level 2 Depth / Length

39.5 cm

Package Level 2 Gross Weight

9.506 kg

Package Level 2 Height

21 cm

Package Level 2 Units

48 piece

Package Level 2 Width

28 cm

Pollution Degree

3

Power Loss

at Rated Operating Conditions per Pole 1.5 … 2.9 W

Rated Impulse Withstand Voltage (Uimp)

Auxiliary Circuit 6 kV

Rated Insulation Voltage (Ui)

690 V

Rated Operational Current AC-15 (Ie)

(120 V) NC 3 A

Rated Operational Current DC-13 (Ie)

(125 V) NC 0.25 A

Recommended Screw Driver

Auxiliary Circuit Pozidriv 1

Tightening Torque

Auxiliary Circuit 1 … 1.3 N·m

Tightening Torque UL/CSA

Auxiliary Circuit 12 in·lb

Wire Stripping Length

Auxiliary Circuit 9 mm

Application

A9

Customs Tariff Number

85364900

Degree of Protection IP

IP20

Extended Product Type

TA25DU-25

GTIN (EAN)

4013614216633

Minimum Order Quantity

1

Product Net Depth (MM)

9.4 cm

Rated Cross-Section

1.5…4mm²

Rated Frequency

50Hz

resistance

11 ms Pulse 12 g

Setting range

18…25A

Standard

IEC/EN 60947-1

Temperature Range

-25…+55°C

Tripping Characteristic

1SAZ200501F0017
