Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 10.35 × 14 × 20.5 cm |

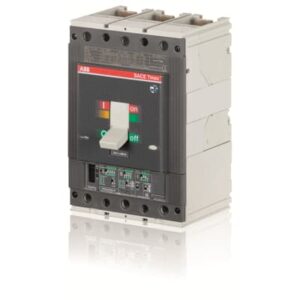

| Extended Product Type | T5S 630 PR222DS/P-LSIG In=630 3p F F |
| Standard | IEC |
| Number of Poles | 3P |
| Execution Type | EL |
| Rated Current | 630A |
| Rated Voltage | 690VAC |
| Breaking Capacity | 85KA |
| Trip Unit | PR222DS/P-LSIG |
| Breaking Class | S |
| Application | T5 |
| Terminal Type | Fixed Circuit-Breakers |
| Product Net Depth (MM) | 10.35 cm |
| Customs Tariff Number | 85362090 |
| Minimum Order Quantity | 1 |
| GTIN (EAN) | 8.01564E+12 |
| L1 | |
| L2 | Switchgear & Contactors |
| L3 | Moulded Case Circuit Breakers (MCCB) |
| Electrical Durability | 5000 cycle |
| Mechanical Durability | 20000 cycle |
| Package Level 1 Depth / Length | 28.5 cm |
| Package Level 1 Gross Weight | 5.1 kg |
| Package Level 1 Height | 24 cm |
| Package Level 1 Width | 24.8 cm |
| Power Loss | at Rated Operating Conditions per Pole 41 W |
| Product Name | Moulded Case Circuit Breaker |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
