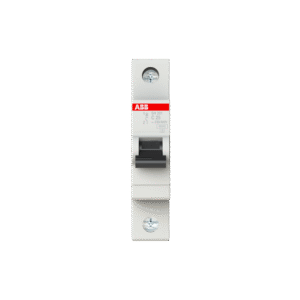

SH201-C25 2CDS211001R0254 Miniature Circuit Breakers (MCB)
ABB

SH201-C25 2CDS211001R0254 Miniature Circuit Breakers (MCB)

11.00 AED

Miniature Circuit Breaker – SH200 – 1P – 25 A – C – (AC) 6 kA

In Stock

Bulk Pricing

QuantityPrice
1 - 5 11.00 AED
6 - 10 10.78 AED
11 - 50 10.56 AED
51 - 200 10.34 AED
200+ 10.12 AED

In stock

Add to Quote
SKU: 2CDS211001R0254 Category: Tags: , , Brands:
  • ✅ Free global shipping on all orders
  • ✅ 30 days easy returns if you change your mind
  • ✅ Order before noon for same day dispatch
Guaranteed Safe Checkout

Description

Compact Home SH200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C),
configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 40 A). All MCBs of the product range SH200 comply with IEC/EN 60898-1, allowing the use for residential applications.

Additional information

Weight105 g
ABB EcoSolutions

Yes

ABB Site Meeting Group Waste To Landfill Target

No non-hazardous waste is sent to a landfill

Accessories Available

No

Actuator Marking

I / O

Actuator Type

Toggle

Breaking Capacity

6kA

Breaking Class

3

Certification Agency

EN

Degree of Protection IP

IP20

Dielectric Test Voltage

50 / 60 Hz – 1 min 2 kV

DIN Place Units

1

Electrical Endurance

20000 AC cycle

Extended Product Lifetime

Product Durability

Extended Product Type

SH201-C25

Frame size

acc. to DIN 43880 1

GTIN (EAN)

4016779630689

Input Voltage Type

AC

L1

Electrical

L2

Switchgear & Contactors

L3

Miniature Circuit Breakers (MCB)

Material

Insulation Group II, RAL 7035

Mechanical Endurance

20000 cycle

Minimum Order Quantity

10

Mounting

any

Mounting Type

TH35-15 (35 x 1.5 cm Mounting Rail) acc. to IEC 60715

Number of Poles

1P

Overvoltage Category

III

Package Level 1 Gross Weight

1.09 kg

Pollution Degree

2

Power Loss

3.2 W

Power Supply Connection

Arbitrary

Product Net Depth (MM)

6.9 cm

Rated Conditional Short-Circuit Current (Inc)

(230 V) 6 kA

Rated Cross-Section

25mm²

Rated Current

25A

Rated Frequency

50/60Hz

Rated Impulse Withstand Voltage (Uimp)

4 kV

Rated Insulation Voltage (Ui)

acc. to IEC/EN 60664-1 440 V

Rated Voltage

230VAC

Recommended Screw Driver

Pozidriv 2

Recyclability Rate of the Product acc. to EN45555

Design for Closing Resource Loops – Standard EN45555 – 92.1 %

resistance

20 Cycles with Load 0.8 In: 5 g 5 … 150 … 5 Hz

Standard

IEC/EN 60898-1

Status indicator

ON / OFF

Temperature Range

-25…+55°C

Terminal type

Screw Terminals

Tightening Torque

2 N·m

Tripping Characteristic

C
