Additional information
| Weight | 224 g |
|---|---|
| Dimensions | 6.9 × 3.5 × 8.8 cm |

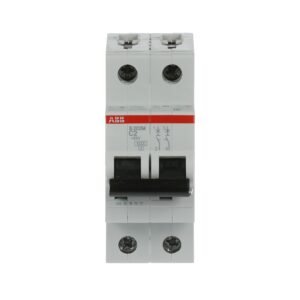

| Extended Product Type | S202 m-C2 |
| Standard | IEC/EN 60898-1 |
| Number of Poles | 2P |
| Rated Current | 2A |
| Rated Voltage | 400VAC |
| Rated Frequency | 50/60Hz |
| Breaking Capacity | 25KA |
| Frame size | acc. to DIN 43880 1 |
| Breaking Class | 3 |
| Material | Insulation Group II, RAL 7035 |
| Mounting | any |
| Degree of Protection IP | IP20 |
| Tripping Characteristic | C |
| Mounting Type | TH35-15 (35 x 1.5 cm Mounting Rail) acc. to IEC 60715 |
| Rated Cross-Section | 1 cm² |
| Terminal Type | Screw Terminals |
| Product Net Depth (MM) | 6.9 cm |
| Minimum Order Quantity | 5 |
| Temperature Range | -25…+55°C |
| DIN Place Units | 2 |
| GTIN (EAN) | 4.01678E+12 |
| Status indicator | Red ON / Green OFF |
| Resistance | 20 Cycles with Load 0.8 In: 5 g 5 … 150 … 5 Hz |
| L1 | |
| L2 | Switchgear & Contactors |
| L3 | Miniature Circuit Breakers (MCB) |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Accessories Available | Yes |
| Actuator Marking | I / O |
| Actuator Type | Toggle |
| Certification Agency | EN |
| Connecting Capacity UL/CSA | Busbar 14-8 AWG |
| Country of Origin | India |
| Dielectric Test Voltage | 50 / 60 Hz – 1 min 2 kV |
| Electrical Endurance | 20000 AC cycle |
| Extended Product Lifetime | Product Durability |
| Input Voltage Type | AC/DC |
| Interrupting Rating acc. to UL1077 | (125 V DC) 10 kA |
| Maximum Operating Voltage UL/CSA | 125 V DC |
| Mechanical Endurance | 20000 cycle |
| Offered with Takeback Services | Take Back for Recycling |
| Overvoltage Category | III |
| Package Level 1 Gross Weight | 1.16 kg |
| Pollution Degree | 3 |
| Power Loss | 3.6 W |
| Power Supply Connection | Arbitrary |
| Rated Conditional Short-Circuit Current (Inc) | (230 V) 15 kA |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V |
| Recommended Screw Driver | Pozidriv 2 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops – Standard EN45555 – 80.7 % |
| Tightening Torque | 2.8 N·m |
| Tightening Torque UL/CSA | 18 in·lb |
