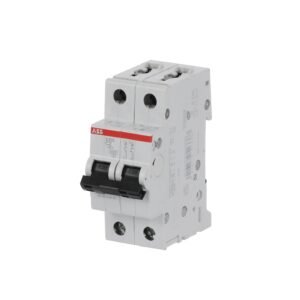

S202-C2 2CDS252001R0024 Miniature Circuit Breakers (MCB)
ABB

S202-C2 2CDS252001R0024 Miniature Circuit Breakers (MCB)

$26.41

Miniature Circuit Breaker – S200 – 2P – 2 A – C – (AC) 6 kA

In Stock

Bulk Pricing

QuantityPrice
1 - 5 $26.41
6 - 10 $25.88
11 - 50 $25.35
51 - 200 $24.83
200+ $24.30

In stock

Add to Quote
SKU: 2CDS252001R0024 Category: Tags: , , Brands:
  • ✅ Free global shipping on all orders
  • ✅ 30 days easy returns if you change your mind
  • ✅ Order before noon for same day dispatch
Guaranteed Safe Checkout

Description

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.

Additional information

Weight224 g
Dimensions6.9 × 3.5 × 8.8 cm
Extended Product Type

S202-C2

Standard

IEC/EN 60898-1

Number of Poles

2P

Rated Current

2A

Rated Voltage

400VAC

Rated Frequency

50/60Hz

Breaking Capacity

10KA

Frame size

acc. to DIN 43880 1

Breaking Class

3

Material

Insulation Group II, RAL 7035

Mounting

DIN-Rail

Degree of Protection IP

IP20

Tripping Characteristic

C

Mounting Type

DIN-Rail

Rated Cross-Section

1 cm²

Terminal Type

Screw Terminals

Product Net Depth (MM)

6.9 cm

Minimum Order Quantity

5

Temperature Range

-25…+55°C

DIN Place Units

2

GTIN (EAN)

4.01678E+12

Status indicator

Red ON / Green OFF

Resistance

20 Cycles with Load 0.8 In: 5 g 5 … 150 … 5 Hz

L1

L2

Switchgear & Contactors

L3

Miniature Circuit Breakers (MCB)

ABB EcoSolutions

Yes

ABB Site Meeting Group Waste To Landfill Target

No non-hazardous waste is sent to a landfill

Accessories Available

Yes

Actuator Marking

I / O

Actuator Type

Toggle

Certification Agency

EN

Connecting Capacity UL/CSA

Busbar 18-8 AWG

Country of Origin

Czechia

Criticality

No

Dielectric Test Voltage

50 / 60 Hz – 1 min 2 kV

Electrical Endurance

20000 AC cycle

Extended Product Lifetime

Product Durability

Input Voltage Type

AC/DC

Interrupting Rating acc. to UL1077

(277 V AC) 6 kA

Maximum Operating Voltage UL/CSA

110 V DC

Mechanical Endurance

20000 cycle

Note

No

Offered with Takeback Services

Take Back for Recycling

Overvoltage Category

III

Package Level 1 Gross Weight

1.16 kg

Pollution Degree

3

Power Loss

3.6 W

Power Supply Connection

Arbitrary

Rated Conditional Short-Circuit Current (Inc)

(230 V) 20 kA

Rated Impulse Withstand Voltage (Uimp)

4 kV

Rated Insulation Voltage (Ui)

acc. to IEC/EN 60664-1 440 V

Recommended Screw Driver

Pozidriv 2

Recyclability Rate of the Product acc. to EN45555

Design for Closing Resource Loops – Standard EN45555 – 80.7 %

Technical Information

S202-C2

Tightening Torque

2.8 N·m

Tightening Torque UL/CSA

18 in·lb

Wire Stripping Length

1.25 cm
