Additional information
| Weight | 223 kg |
|---|---|
| Dimensions | 65 × 52.8 × 85 cm |

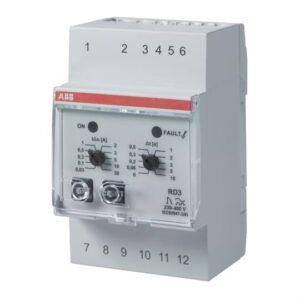

| Extended Product Type | RD3 |
| Standard | IEC EN 60947-2 Ann M |
| Rated Current | Response value amperage 1 500 … 500 mA |
| Rated Voltage | 400V |
| Rated Frequency | 60Hz |
| Mounting | DIN-Rail |
| Application | For mixed system |
| Mounting Type | DIN-Rail |
| Product Net Depth (MM) | 6.5 cm |
| Minimum Order Quantity | 1 |
| GTIN (EAN) | 8012542734833 |
| _OG Title | RD3 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Data Sheet, Technical Information | 9AKK107046A0424 |
| Declaration of Conformity - CE | 9AKK106713A5628 |
| Delay Time (<span style=\ | Delay-On Energization, Maximum, Permitted 10 s |
| Display Name | RD3 |
| E-Number (Finland) | 2712037 |
| E-Number (Norway) | 1629772 |
| E-Number (Sweden) | 2100356 |
| ETIM 10 | EC001445 – Residual current monitoring relay |
| ETIM 9 | EC001445 – Residual current monitoring relay |
| Filter Option | no frequency filter |
| IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) |
| Instructions and Manuals | 2CSF423005D1002 |
| Number of Contacts | 2 |
| Number of Contacts CO | 1 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 0 |
| Object Classification Code | F |
| Options Provided | Pre-alarm threshold: no |
| Package Level 1 Gross Weight | 307 g |
| Power Loss | Total 3.6 W |
| Product ID | 2CSJ201001R0002 |
| REACH Date | 20240429 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False – does not contain substances > 0.1 mass percentage |
| Rated Control Supply Voltage (Us) | (50 Hz) 400…400 V |
| RoHS Date | 20220119 |
| RoHS Declaration | 9AKK106713A5628 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Type of Residual Current | Type A |
| UNSPSC | 39121601 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.0 : 27371809 |
