Additional information
| Weight | 29 g |
|---|---|
| Dimensions | 2.9 × 2.25 × 2.8 cm |
| Color | Transparent |
| Contact type | 3 CO contact with test button (AgNi gold-plated) |
| Degree of Protection IP | IP20 |
| Execution Type | 27-37-16-01 |
| Inrush current | 20 A / 20 ms |
| L1 | Electronic Components |
| L2 | Switches & Relays |
| L3 | DPDT), PCB Mount Relays (SPDT |
| Minimum Order Quantity | 10 |

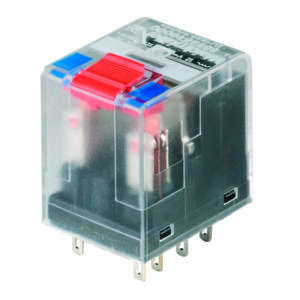

| Product Type | Switching relay |
| Protection | 2 |
| Rated Current | 10A |
| Rated Residual Current | 10mA |
| Rated Voltage | 240V |
| Standard | E522350 |
| Surge protection | 5 kV (1.2/50 µs) |
| Temperature Range | -40C…70C |
| Terminal Type | Plug-in connection |
