Additional information
| Weight | 30 kg |
|---|---|
| Dimensions | 153 × 586.5 × 3.72 m |

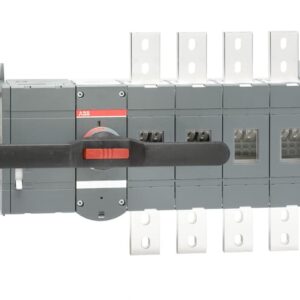

| Extended Product Type | OTM1600E4M230C |
| Standard | IEC 60947-3 |
| Number of Poles | 4P |
| Rated Current | 1600A |
| Rated Voltage | 1000V |
| Color | Grey |
| Mounting | Base mounting |
| Row Spacing | Standard |
| Degree of Protection IP | IP00 |
| Mounting Type | Base mounting |
| Terminal type | Lug terminals |
| Product Net Depth (MM) | 15.3 cm |
| Customs Tariff Number | 85365080 |
| Minimum Order Quantity | 1 |
| Operating mode | Front |
| GTIN (EAN) | 6417019477398 |
| _OG Title | OTM1600E4M230C |
| ATEX Certificate | No certification needed |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Country of Origin | Finland |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Declaration of Conformity - CE | 1SCC301213D2702 |
| Display Name | OTM1600E4M230C |
| ETIM 10 | EC000216 – Switch disconnector (AC) |
| ETIM 9 | EC000216 – Switch disconnector (low voltage) |
| End Of Life Disassembling Instructions | 1SCC301141M0201 |
| Environmental Product Declaration - EPD | 1SCC303101D0201 |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched – Simultaneous Function |
| Handle Type | Direct Mount |
| Instructions and Manuals | 1SCC303006M0205 |
| Mechanical Durability | 6000 |
| Motor Operational Voltage | 220 … 240 V AC |
| Object Classification Code | Q |
| Package Level 1 Depth / Length | 67.3 cm |
| Package Level 1 Gross Weight | 32 kg |
| Package Level 1 Height | 21.5 cm |
| Package Level 1 Width | 43.5 cm |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In – Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 48 W |
| Product ID | 1SCA115369R1001 |
| REACH Declaration | 1SCC011021D0201 |
| Rated Conditional Short-Circuit Current (Inc) | (1250 A fuse, 415 V) 80 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 … 415 V) 1600 A |
| Rated Operational Current AC-22A (Ie) | (380 … 415 V) 1600 A |
| Rated Operational Current AC-23A (Ie) | (380 … 415 V) 1250 A |
| Rated Operational Power AC-23A (Pe) | (400 … 415 V) 710 kW |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 92 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Special Functions | No |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| UL Certificate | No certification needed |
| UNSPSC | 39122233 |
| VDE Certificate | No certification needed |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
