Additional information
| Weight | 7.415 kg |
|---|---|
| Dimensions | 20.3 × 26.5 × 18.5 cm |

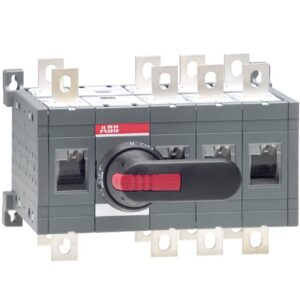

| Extended Product Type | OT315E13CP |
| Number of Poles | 3P |
| Rated Current | 315A |
| Rated Voltage | 1000V |
| Color | black |
| Mounting | Base mounting |
| Row Spacing | Standard |
| Degree of Protection IP | IP20 |
| Mounting Type | Base mounting |
| Terminal Type | Screw Terminals |
| Product Net Depth (MM) | 20.3 cm |
| Customs Tariff Number | 85365080 |
| Minimum Order Quantity | 1 |
| Operating mode | Front |
| GTIN (EAN) | 6.41702E+12 |
| L1 | |
| L2 | Power Distribution |
| L3 | Changeover Switches |
| Country of Origin | Finland |
| Package Level 1 Depth / Length | 32.5 cm |
| Package Level 1 Gross Weight | 7.865 kg |
| Package Level 1 Height | 21.8 cm |
| Package Level 1 Width | 24 cm |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In – Bottom Out, Bottom In – Top Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 … 415 V) 315 A |
| Rated Operational Current AC-22A (Ie) | (380 … 415 V) 315 A |
| Rated Operational Current AC-23A (Ie) | (380 … 415 V) 315 A |
| Rated Operational Current AC-31B (Ie) | (380 … 415 V) 315 A |
| Rated Operational Current AC-33B (Ie) | (380 … 415 V) 315 A |
| Rated Operational Power AC-23A (Pe) | (380 … 415 V) 160 kW |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Switches Operating Mechanism | Mechanism Between the Poles |
| Terminal Width | 2.5 cm |
| Tightening Torque | acc. IEC 60947-1 30 … 44 N·m |
| Transition Type | Open |
