Additional information
| Weight | 3.1 kg |
|---|---|
| Dimensions | 160 × 170 × 1.5 m |

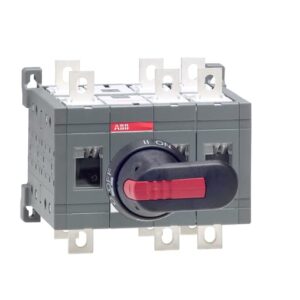

| Extended Product Type | OT160E12CP |
| Number of Poles | 3P |
| Rated Current | 160A |
| Rated Voltage | 1000V |
| Color | Black |
| Mounting | Base mounting |
| Row Spacing | Standard |
| Degree of Protection IP | IP20 |
| Mounting Type | Base mounting |
| Terminal type | Screw Terminals |
| Product Net Depth (MM) | 16 cm |
| Customs Tariff Number | 85365080 |
| Minimum Order Quantity | 1 |
| Operating mode | Front |
| GTIN (EAN) | 6417019252971 |
| _OG Title | OT160E12CP |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Country of Origin | Finland |
| DNV Certificate | 1SCC303138D0201 |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Declaration of Conformity - CE | 1SCC303001D2704 |
| Display Name | OT160E12CP |
| E-Number (Finland) | 3641510 |
| ETIM 10 | EC000216 – Switch disconnector (AC) |
| ETIM 9 | EC000216 – Switch disconnector (low voltage) |
| End Of Life Disassembling Instructions | 1SCC303050M0201 |
| Environmental Information | 1SCC303050D0201 |
| Environmental Product Declaration - EPD | 1SCC303082D0201 |
| Instructions and Manuals | 1SCC303008M0208 |
| Object Classification Code | Q |
| Package Level 1 Depth / Length | 30 cm |
| Package Level 1 Gross Weight | 3.4 kg |
| Package Level 1 Height | 18.5 cm |
| Package Level 1 Width | 18.6 cm |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In – Bottom Out, Bottom In – Top Out |
| Power Loss | at Rated Operating Conditions per Pole 2.4 W |
| Product ID | 1SCA022776R9080 |
| REACH Declaration | 1SCC011021D0201 |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 … 415 V) 160 A |
| Rated Operational Current AC-22A (Ie) | (380 … 415 V) 160 A |
| Rated Operational Current AC-23A (Ie) | (380 … 415 V) 160 A |
| Rated Operational Current AC-31B (Ie) | (380 … 415 V) 160 A |
| Rated Operational Current AC-33B (Ie) | (380 … 415 V) 160 A |
| Rated Operational Power AC-23A (Pe) | (380 … 415 V) 90 kW |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 11e6fd39-1459-427b-9034-c0e6e95a96fb Finland |
| Simplified SCIP | 005fdb60-3703-43ee-b366-429ca783ff91 Germany |
| Switches Operating Mechanism | Mechanism Between the Poles |
| Terminal Width | 2 cm |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
| Transition Type | Open |
| UNSPSC | 39122233 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
