Additional information
| Weight | 3.6 kg |
|---|---|
| Dimensions | 13 × 28 × 38 cm |

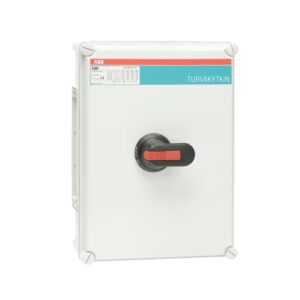

| Extended Product Type | OT125GFCC4T |
| Standard | -3, IEC 60947-1 |
| Number of Poles | 4P |
| Rated Current | 125A |
| Rated Voltage | 1000V |
| Material | Plastic |
| Color | RAL7035 |
| Degree of Protection IP | IP65 |
| Rated Cross-Section | 10…7 cm² |
| Terminal Type | Screw Terminals |
| Product Net Depth (MM) | 13 cm |
| Customs Tariff Number | 85363030 |
| Minimum Order Quantity | 1 |
| GTIN (EAN) | 6.41702E+12 |
| Resistance | Housing IK08 |
| L1 | |
| L2 | Enclosures & Cabinets |
| L3 | IP66, IP67+), Weatherproof Boxes (IP65 |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | II-flange / II-flange |
| Country of Origin | Finland |
| Handle Type | Pistol |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Neutral Type | Switchable Neutral |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Package Level 1 Depth / Length | 51 cm |
| Package Level 1 Gross Weight | 4.7 kg |
| Package Level 1 Height | 26.5 cm |
| Package Level 1 Width | 29.5 cm |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In – Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 6.3 W |
| Rated Conditional Short-Circuit Current (Inc) | 24 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 … 415 V) 125 A |
| Rated Operational Current AC-23A (Ie) | (380 … 415 V) 125 A |
| Rated Operational Power AC-23A (Pe) | (380 … 415 V) 55 kW |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 12 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 4 kA |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | Main Circuit 6 N·m |
| Wire Stripping Length | 2 cm |
