6,659.00 AED

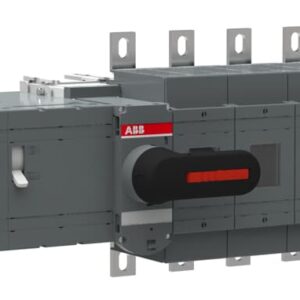

OSM400D4N2M230C MOTORIZED SWITCH FUSE
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | 6,659.00 AED |
| 6 - 10 | 6,525.82 AED |
| 11 - 50 | 6,392.64 AED |
| 51 - 200 | 6,259.46 AED |
| 200+ | 6,126.28 AED |
Out of stock
Motorized switch-disconnector fuse, 400A, 4-pole, DIN 0/1/2, switched non-fusible fourth pole, motor voltage Ue = 220-240 VAC, including a handle for manual operation and male connectors for control circuit and a handle and spare fuse storage clip.
| Weight | 12.9 kg |
|---|---|
| Dimensions | 23 × 46.8 × 25.1 cm |
| Extended Product Type | OSM400D4N2M230C |
| Standard | IEC 60947-3 |
| Number of Poles | 4P |
| Rated Current | 400A |
| Rated Voltage | 690VAC |
| Mounting | Base mounting |
| Fuse system | DIN |
| Degree of Protection IP | IP20 |
| Mounting Type | Base mounting |
| Terminal Type | Lug terminals |
| Product Net Depth (MM) | 23 cm |
| Customs Tariff Number | 85365080 |
| Minimum Order Quantity | 1 |
| Operating mode | Motor Operated and Manually From the Front |
| GTIN (EAN) | 6417019505114 |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Country of Origin | Finland |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched – With Solid Link |
| Handle Type | Pistol |
| Motor Operational Voltage | 220 … 240 V AC |
| Package Level 1 Depth / Length | 56 cm |
| Package Level 1 Gross Weight | 12.9 kg |
| Package Level 1 Height | 33 cm |
| Package Level 1 Width | 31 cm |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In – Bottom Out, Bottom In – Top Out |
| Power Loss | at Rated Current 36 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 … 415 V) 200 A |
| Rated Operational Current AC-22A (Ie) | (380 … 415 V) 200 A |
| Rated Operational Current AC-23A (Ie) | (380 … 415 V) 200 A |
| Rated Operational Power AC-23A (Pe) | (380 … 415 V) 220 kW |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 14 kiloampere rms |
| Switches Operating Mechanism | 04 (Left Side) |
| Tightening Torque | 30 … 44 N·m |
