Description

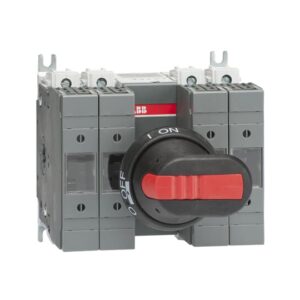

Switch-disconnector fuse, 63A, 4-pole, DIN 000, front operated, switched fusible fourth pole, handle and shaft included.
OS63GD22FP SWITCH FUSE
726.00 AED
OS63GD22FP SWITCH FUSE
Not held in stock. We order it from the manufacturer, and the lead time — about 2 months on average — starts once they confirm the order.Subject to the manufacturer's final confirmation.
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | 726.00 AED |
| 6 - 10 | 711.48 AED |
| 11 - 50 | 696.96 AED |
| 51 - 200 | 682.44 AED |
| 200+ | 667.92 AED |
Out of stock
- Free delivery in the UAE over 150.00 AED, worldwide over 5,000.00 AED
- Prices exclude VAT — VAT is shown at checkout, and exports are zero‑rated
- 15 days to return it if it is not right
- Need project or volume pricing? Use Add to Quote and our team will price it
Description
Additional information
Additional information
| Weight | 1.39 kg |
|---|---|
| Dimensions | 12.1 × 13.6 × 12.5 cm |
| Extended Product Type | OS63GD22FP |
| Standard | IEC 60947-3 |
| Number of Poles | 4P |
| Rated Current | 63A |
| Rated Voltage | 690VAC |
| Mounting | Base mounting |
| Fuse system | DIN |
| Degree of Protection IP | IP20 |
| Mounting Type | Base mounting |
| Rated Cross-Section | 2.5…25mm² |
| Terminal Type | Screw Terminals |
| Product Net Depth (MM) | 12.1 cm |
| Customs Tariff Number | 85365080 |
| Minimum Order Quantity | 1 |
| Operating mode | Front |
| GTIN (EAN) | 6417019476575 |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Country of Origin | Finland |
| Fourth Pole Type | Switched – Fusible Pole |
| Handle Type | Pistol |
| Package Level 1 Depth / Length | 19 cm |
| Package Level 1 Gross Weight | 1.5 kg |
| Package Level 1 Height | 14.5 cm |
| Package Level 1 Width | 17 cm |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In – Bottom Out, Bottom In – Top Out |
| Power Loss | at Rated Current 2 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 63 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 63 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 63 A |
| Rated Operational Power AC-23A (Pe) | (220 … 240 V) 18.5 kW |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Switches Operating Mechanism | 22 (Between the Poles) |
| Tightening Torque | 3 N·m |
| Wire Stripping Length | Main Circuit 1.2 cm |
