Description

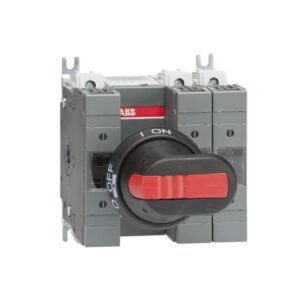

ABB OS63GB12P SWITCH FUSE, Fuses & Fuse Holders — manufacturer part number 1SCA115325R1001.
Switch-disconnector fuse, 63A, 3-pole, British Standard A2/A3, front operated, handle and shaft included.
Technical data
- Brand: ABB
- Manufacturer part number: 1SCA115325R1001
- Extended Product Type: OS63GB12P
- Standard: IEC 60947-3
- Number of Poles: 3P
- Rated Current: 63A
- Rated Voltage: 690VAC
- Mounting: Base mounting
- Fuse system: British Standard
- Degree of Protection IP: IP20
- Mounting Type: Base mounting
- Rated Cross-Section: 2.5…25mm²
- Terminal Type: Screw Terminals
- Product Net Depth (MM): 10.9 cm
- Customs Tariff Number: 85365080
- Minimum Order Quantity: 1
- Operating mode: Front
- GTIN (EAN): 6417019477039
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Country of Origin: Finland
- Handle Type: Pistol
- Package Level 1 Depth / Length: 19 cm
- Package Level 1 Gross Weight: 1.3 kg
- Package Level 1 Height: 14.5 cm
- Package Level 1 Width: 17 cm
- Pollution Degree: 3
- Position of Line Terminals: Top In – Bottom Out, Bottom In – Top Out
- Power Loss: at Rated Current 2 W
- Rated Conditional Short-Circuit Current (Inc): (500 V) 100 kA
- Rated Impulse Withstand Voltage (Uimp): 12 kV
- Rated Insulation Voltage (Ui): 1000 V
- Rated Operational Current AC-21A (Ie): (500 V) 63 A
- Rated Operational Current AC-22A (Ie): (500 V) 63 A
- Rated Operational Current AC-23A (Ie): (500 V) 63 A
- Rated Operational Power AC-23A (Pe): (220 … 240 V) 18.5 kW
- Rated Short-time Withstand Current Low Voltage (Icw): for 1 s 2.5 kiloampere rms
- Recommended Screw Driver: Main Circuit Hexagon 4
- Switches Operating Mechanism: 12 (Between the Poles)
- Tightening Torque: 3 N·m
- Wire Stripping Length: Main Circuit 1.2 cm
