Description

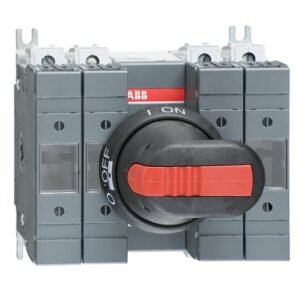

Switch-disconnector fuse, 50A, 4-pole, NFC 14×51, front operated, switched non-fusible fourth pole, handle and shaft included.
OS50GF22N1P SWITCH FUSE
787.00 AED
OS50GF22N1P SWITCH FUSE
Not held in stock. We order it from the manufacturer, and the lead time — about 2 months on average — starts once they confirm the order.Subject to the manufacturer's final confirmation.
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | 787.00 AED |
| 6 - 10 | 771.26 AED |
| 11 - 50 | 755.52 AED |
| 51 - 200 | 739.78 AED |
| 200+ | 724.04 AED |
Out of stock
- Free delivery in the UAE over 150.00 AED, worldwide over 5,000.00 AED
- Prices exclude VAT — VAT is shown at checkout, and exports are zero‑rated
- 15 days to return it if it is not right
- Need project or volume pricing? Use Add to Quote and our team will price it
Description
Additional information
Additional information
| Weight | 1.7 kg |
|---|---|
| Dimensions | 10.9 × 13.6 × 12.5 cm |
| Extended Product Type | OS50GF22N1P |
| Standard | IEC 60947-3 |
| Number of Poles | 4P |
| Rated Current | 50A |
| Rated Voltage | 690VAC |
| Mounting | Base mounting |
| Fuse system | NFC |
| Degree of Protection IP | IP20 |
| Mounting Type | Base mounting |
| Rated Cross-Section | 2.5…25mm² |
| Terminal Type | Screw Terminals |
| Product Net Depth (MM) | 10.9 cm |
| Customs Tariff Number | 85365080 |
| Minimum Order Quantity | 1 |
| Operating mode | Front |
| GTIN (EAN) | 6417019470429 |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Country of Origin | Finland |
| Fourth Pole Position | Left Side |
| Fourth Pole Type | Switched – With Solid Link |
| Handle Type | Pistol |
| Package Level 1 Depth / Length | 19 cm |
| Package Level 1 Gross Weight | 1.8 kg |
| Package Level 1 Height | 14.5 cm |
| Package Level 1 Width | 17 cm |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In – Bottom Out, Bottom In – Top Out |
| Power Loss | at Rated Operating Conditions per Pole 2.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 50 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 50 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 50 A |
| Rated Operational Power AC-23A (Pe) | (220 … 240 V) 11 kW |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Switches Operating Mechanism | 22 (Between the Poles) |
| Tightening Torque | 3 N·m |
| Wire Stripping Length | Main Circuit 1.2 cm |
