Description

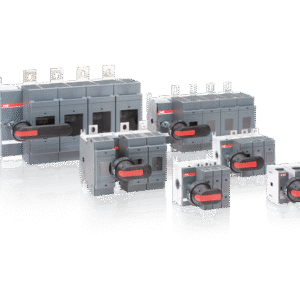

Switch-disconnector fuse, 160A, 4-pole, DIN 000/00, front operated with left in-right out connection, switched non-fusible fourth pole.
OS160GD22LR SPECIAL CONNECTED SWITCH FUSE
2,286.00 AED
OS160GD22LR SPECIAL CONNECTED SWITCH FUSE
Not held in stock. We order it from the manufacturer, and the lead time — about 2 months on average — starts once they confirm the order.Subject to the manufacturer's final confirmation.
Bulk Pricing
| Quantity | Price |
|---|---|
| 1 - 5 | 2,286.00 AED |
| 6 - 10 | 2,240.28 AED |
| 11 - 50 | 2,194.56 AED |
| 51 - 200 | 2,148.84 AED |
| 200+ | 2,103.12 AED |
In stock
- Free delivery in the UAE over 150.00 AED, worldwide over 5,000.00 AED
- Prices exclude VAT — VAT is shown at checkout, and exports are zero‑rated
- 15 days to return it if it is not right
- Need project or volume pricing? Use Add to Quote and our team will price it
Description
Additional information
Additional information
| Weight | 2.9 kg |
|---|---|
| Dimensions | 15.6 × 27.7 × 15 cm |
| Extended Product Type | OS160GD22LR |
| Standard | IEC 60947-3 |
| Number of Poles | 4P |
| Rated Current | 160A |
| Rated Voltage | 690VAC |
| Mounting | Base mounting |
| Fuse system | DIN |
| Degree of Protection IP | IP20 |
| Mounting Type | Base mounting |
| Terminal Type | Lug terminals |
| Product Net Depth (MM) | 15.6 cm |
| Customs Tariff Number | 85365080 |
| Minimum Order Quantity | 1 |
| Operating mode | Front |
| GTIN (EAN) | 6417019517872 |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Country of Origin | Finland |
| Fourth Pole Type | Switched – Fusible Pole |
| Handle Type | Handle Not Included |
| Package Level 1 Depth / Length | 30 cm |
| Package Level 1 Gross Weight | 3.2 kg |
| Package Level 1 Height | 18.5 cm |
| Package Level 1 Width | 18.6 cm |
| Pollution Degree | 3 |
| Position of Line Terminals | Left In – Right Out |
| Power Loss | at Rated Current 11 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 160 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 160 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 160 A |
| Rated Operational Power AC-23A (Pe) | (220 … 240 V) 45 kW |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kiloampere rms |
| Switches Operating Mechanism | 22 (Between the Poles) |
| Terminal Width | 2 cm |
| Tightening Torque | 15 … 22 N·m |
