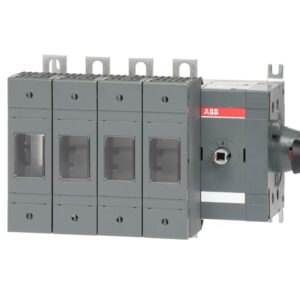

ABB OS125GFS40N1K SWITCH FUSE, Fuses & Fuse Holders — manufacturer part number 1SCA115945R1001.
Switch-disconnector fuse, 125A, 4-pole, NFC 22×58, side operated with direct handle, switched non-fusible fourth pole.
Technical data
- Brand: ABB
- Manufacturer part number: 1SCA115945R1001
- Extended Product Type: OS125GFS40N1K
- Standard: IEC 60947-3
- Number of Poles: 4P
- Rated Current: 125A
- Rated Voltage: 690VAC
- Mounting: Base mounting
- Fuse system: NFC
- Degree of Protection IP: IP20
- Mounting Type: Base mounting
- Terminal Type: Lug terminals
- Product Net Depth (MM): 13 cm
- Customs Tariff Number: 85365080
- Minimum Order Quantity: 1
- Operating mode: Side
- GTIN (EAN): 6417019482125
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Country of Origin: Finland
- Fourth Pole Position: Left Side
- Fourth Pole Type: Switched – With Solid Link
- Handle Type: Direct Mount
- Package Level 1 Depth / Length: 25 cm
- Package Level 1 Gross Weight: 2.8 kg
- Package Level 1 Height: 15.5 cm
- Package Level 1 Width: 17 cm
- Pollution Degree: 3
- Position of Line Terminals: Top In – Bottom Out, Bottom In – Top Out
- Power Loss: at Rated Operating Conditions per Pole 4 W
- Rated Conditional Short-Circuit Current (Inc): (500 V) 100 kA
- Rated Impulse Withstand Voltage (Uimp): 8 kV
- Rated Insulation Voltage (Ui): 1000 V
- Rated Operational Current AC-21A (Ie): (500 V) 125 A
- Rated Operational Current AC-22A (Ie): (500 V) 125 A
- Rated Operational Current AC-23A (Ie): (500 V) 125 A
- Rated Operational Power AC-23A (Pe): (220 … 240 V) 37 kW
- Rated Short-time Withstand Current Low Voltage (Icw): for 1 s 5 kiloampere rms
- Switches Operating Mechanism: 40 (Right Side)
- Terminal Width: 2 cm
- Tightening Torque: 15 … 22 N·m
